What does a 555 do in a circuit?
The 555 timer IC is an integrated circuit (chip) used in a variety of timer, delay, pulse generation, and oscillator applications. Derivatives provide two (556) or four (558) timing circuits in one package.
What is a 555 astable oscillator circuit?
Astable mode works as a oscillator circuit, in which output oscillate at a particular frequency and generate pulses in rectangular wave form. Using 555 timer IC, we can generate precise time duration of HIGH and LOW output, from micro seconds to hours, that’s why 555 is very popular and versatile IC.
How do you wire a 555 timer circuit?
Use jumper wire to connect pins 4 and 8 to each other (red) and pins 2 and 6 to each other (yellow). Attach the positive lead of a speaker to pin 3 of the 555 and connect the negative lead to ground (pin 1). Low values of RA should be avoided because they prevent the 555 timer from discharging the capacitor C normally.
How do you set the frequency on a 555 timer?
In this 555 timer Astable calculator, enter the values of timing capacitor C and timing resistors R1 & R2 to calculate the frequency, period and duty cycle….555 Timer Astable Calculator Description.
| Parameter | Formulae | Unit |
|---|---|---|
| Time Period (T) | 0.693 × (R1+2×R2) × C1 | Seconds |
| Frequency (F) | 1.44 / (R1+2×R2) × C1 | Hertz (Hz) |
Why do we use astable multivibrator?
Regenerative switching circuits such as Astable Multivibrators are the most commonly used type of relaxation oscillator because not only are they simple, reliable and ease of construction they also produce a constant square wave output waveform.
How do you find the frequency of a 555 oscillator?
How to Calculate Output Voltage Frequency
- T=1f=0.694(R1+2R2)C.
- T1=0.694(R1+R2)C.
- T0=0.694R2C.
How does the IC 555 work in astable mode?

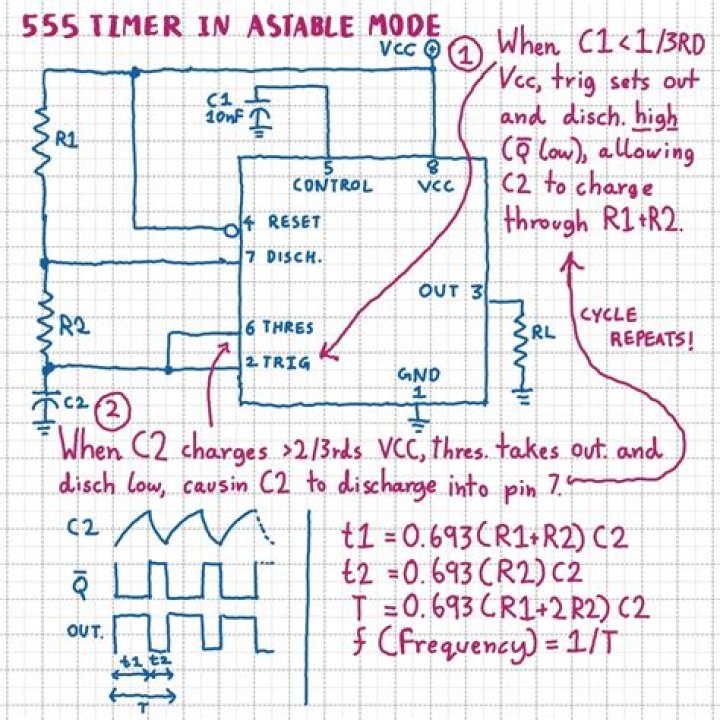

The following schematic depicts the internal circuit of the IC 555 operating in astable mode. The RC timing circuit incorporates R 1, R 2 and C. Initially, on power-up, the flip-flop is RESET (and hence the output of the timer is low). As a result, the discharge transistor is driven to saturation (as it is connected to Q’).
What is an astable circuit for a 555 timer?
In an astable circuit, the output voltage alternates between VCC and 0 volts on a continuous basis. The 555 timer shown above is configured as an astable circuit. This means that the output voltage is a periodic pulse that alternates between the VCC value and 0 volts.
How does an astable 555 oscillator work?
The simplest 555 free-running astable oscillator circuit connects pin 3 (output) directly to the timing capacitor via a single resistor as shown. Simple 555 Oscillator When the output at pin 3 is HIGH, the capacitor charges up through the resistor.
What is astable synchronous circuit?
A synchronous circuit is a digital circuit in which the changes in the state of memory elements, commonly flip-flops, are synchronized by a clock signal. Because of their availability and ease of use, the 555 astable circuit is the common source of clock signal in many synchronous circuits.
