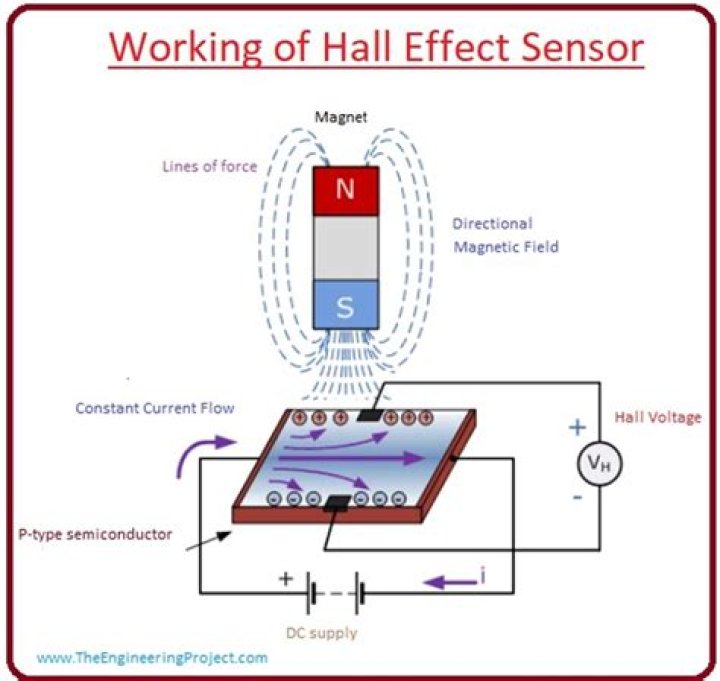

What does a Hall sensor do?

The Hall-effect Sensor is able to distinguish between the positive and negative charge moving in opposite direction. The magnetic field detected by the hall-effect sensor is converted to the suitable analog or digital signal that can be read by the electronic system, usually a motor control system.

What is a ratiometric Hall effect sensor?

A ratiometric Hall effect sensor outputs an analog voltage proportional to the magnetic field intensity. With no magnetic field applied the output is about one-half the supply voltage. The voltage will increase with the south magnetic pole on the face or decrease with the north magnetic pole on the face.

What is 49e Hall sensor?

Info. The SS49E is a linear hall-effect sensor. It can measure both north and south polarity of a magnetic field and the relative strength of the field. The output pin provides an analog output representing if a magnetic field is present, how strong a present field is, and if it is a north or south polar field.

What is a Hall speed sensor?

Hall sensors are commonly used to time the speed of wheels and shafts, such as for internal combustion engine ignition timing, tachometers and anti-lock braking systems. They are used in brushless DC electric motors to detect the position of the permanent magnet.

What is the use of Hall effect?

As a result, the Hall effect is very useful as a means to measure either the carrier density or the magnetic field. One very important feature of the Hall effect is that it differentiates between positive charges moving in one direction and negative charges moving in the opposite.

How many types of Hall sensors are there?

two types
There are two types of Hall effect sensors: Devices with linear (or analogue) outputs, and those that have digital outputs. Analogue sensors use a continuous voltage output that increases within a strong magnetic field and decreases in a weaker field.

What is Hall sensor in motor?

The Hall effect sensor is a sensing switch that. outputs a logic level based on the detection of a magnetic field. Hall effect sensors are economical and because of the permanent. magnets inside a BLDC motor are easy to install inside the motor.
