What ECG finding is suggestive of cor pulmonale?
This ECG shows some typical abnormalities that may be seen in cor pulmonale and other chronic pulmonary diseases: (1) R/S ratio >1 in V1 and <1 in V6 suggestive of right ventricular hypertrophy/enlargement, (2) right superior axis deviation, (3) left atrial type of p wave with increased width of the p wave and biphasic …
What is P Mitrale in ECG?
P-mitrale occurs when the depolarization of the right atrium and left atrium are both visible in the P wave. This is seen as a notch in the P wave and occurs when the left atrium is markedly enlarged, such as in mitral valve stenosis.
What is P Mitrale and P Pulmonale?
Left atrial enlargement is also referred to as P mitrale, and right atrial enlargement is often referred to as P pulmonale.
How is PE diagnosed on ECG?
The most common ECG finding in the setting of a pulmonary embolism is sinus tachycardia. However, the “S1Q3T3” pattern of acute cor pulmonale is classic; this is termed the McGinn-White Sign. A large S wave in lead I, a Q wave in lead III and an inverted T wave in lead III together indicate acute right heart strain.
Does a PE show on ECG?
2 The ECG is often abnormal in PE, but findings are neither sensitive nor specific for the diagnosis of PE.
What is biphasic P wave?
A biphasic P wave in the inferior leads results from interference of the atrial conduction of Bachmann׳s bundle, which in turn results in delayed activation of the left atrium as the impulse propagated from the lower right atrium to the left atrium occurs in a caudo-cranial direction.

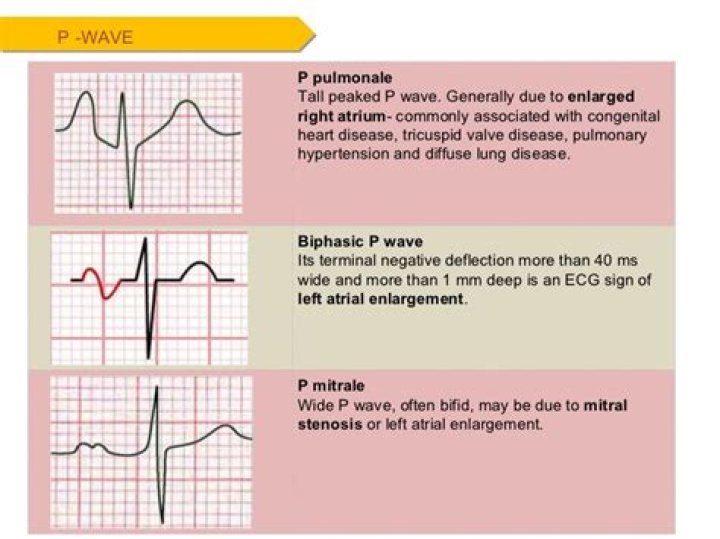

What is a bifid P wave?
Bifid P waves (known as P mitrale) indicate left-atrial abnormality – e.g. dilatation or hypertrophy. If at least three different shaped P waves can be seen in a given ECG lead tracing, this implies that even if one of them arises from the SA node, at least two others are arising elsewhere.
What does P Pulmonale mean?
[ -pul′mə-nā′lē, -pŭl′- ] n. An electrocardiographic syndrome marked by tall, narrow, peaked P waves, presumed to be characteristic of cor pulmonale.
What does a high P wave mean?
The presence of tall, peaked P waves in lead II is a sign of right atrial enlargement, usually due to pulmonary hypertension (e.g. cor pulmonale from chronic respiratory disease).
What does P pulmonale mean on an ECG?
The ECG has, as one could expect, low sensitivity but high sensitivity with respect to detecting atrial enlargement. Left atrial enlargement is also referred to as P mitrale, and right atrial enlargement is often referred to as P pulmonale. The reasons for this is explained below. The normal P-wave contour on ECG
What is P pulmonale atrial enlargement?
Left atrial enlargement is also referred to as P mitrale, and right atrial enlargement is often referred to as P pulmonale. The reasons for this are explained below. The normal P-wave (Figure 1, upper panel) is typically smooth, symmetric and positive.
What are the ECG criteria for right atrial enlargement?
ECG Criteria of Right Atrial Enlargement. Right atrial enlargement produces a peaked P wave (P pulmonale) with amplitude: > 2.5 mm in the inferior leads (II, III and AVF)
What is the P wave amplitude of P pulmonale and P mitrale?
The P-wave amplitude is >2.5 mm in P pulmonale. P mitrale: left atrial enlargement (hypertrophy, dilatation) If the left atrium encounters increased resistance (due to mitral valve stenosis , mitral valve regurgitation , hypertension , hypertrophic cardiomyopathy ) it becomes enlarged (hypertrophy) which enhances its contribution to the P-wave.
