What engine does a John Deere 4010 have?
John Deere 4010
| John Deere 4010 Engines | |
|---|---|
| John Deere 4.9L 6-cyl gasoline | |
| John deere 4.9L 6-cyl LP gas | |
| Fuel tank: | 34 gal 128.7 L |
| Engine details … |
What is the horsepower of a 4010 John Deere?
John Deere 4010 Horsepower Capacity The John Deere 4010 farm tractor was rated at 80 HP (horsepower) back in 1960. Later on, it reached up to 80 hp at a field-testing done in Nebraska. Such a result led to the acknowledgment that it was among the most powerful 2-wheel drive under the farm factor category at that time.

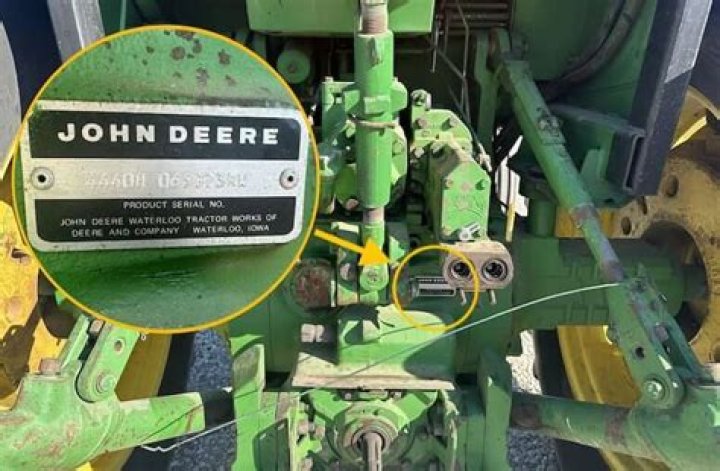

What year is my 4010 John Deere tractor?
Specifications
| Make: John Deere | Model: 4010 | Years Made: 1961-1963 |
|---|---|---|
| HP-Range: 81 | Engine-Make: JD | Engine-Fuel: GAS |
| Engine-Cyl(s)-CID: 6/302 | Transmission-STD: SM | Optional: |
| Fwd/Rev Standard: 8/3 | Fwd/Rev Optional: | Mfwd-Std/Opt: |
| Tires-Std Front: 6.00-16 | Tires-Std Rear: 13.6-38 | Wheelbase-Inch: 99.25 |
Is a John Deere 4010 positive ground?
JD 4010 diesel electrical system is both positive & negative ground with starter/generator/voltage regulater isolated from tractor frame with NO ground + or -. Starter solenoid is engaged by completing 24 volt circuit but not by means of a ground.
How do you change a tractor from positive ground to negative ground?
All that you need to do is reverse the battery cables (negative cable from the battery is now ground… the positive cable from the battery goes to the starter) then reverse the wires on the amp gauge or in the case of Fords… straighten the loop of wire out going thru the back of the amp gauge and you are done!
Is a John Deere B positive or negative?
It was built as a positive ground system, typical for its day.
Is a John Deere A positive ground?
Most 12V systems OTHER than Ford and using generators are positive ground. Includes Deere, Oliver, IH, AC.
