What happens in Curie temperature?

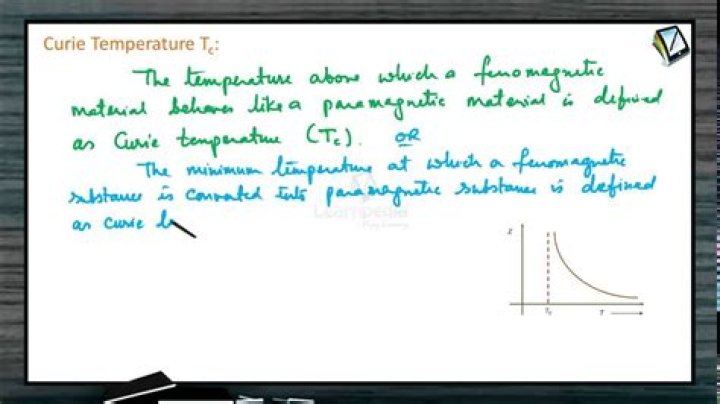

Curie temperature is the temperature above which the magnetic materials lose their ferromagnetic properties. At lower temperatures, the magnetic dipoles are aligned. Above the curie temperature, random thermal motions cause misalignment of the dipoles.
What is Curie temperature and what happens above Curie temperature?
What happens above Curie temperature? The temperatuer at which the domain structure of magnetic’ materials gets completely destroyed is called Curie temperature. Above Curie temperature ferromagnetic substances are converted to paramagnetic substances.
Which metal shows highest Curie temperature?
One of the highest Curie points is 1,121 °C (2,050 °F) for cobalt. Temperature increases above the Curie point produce roughly similar patterns of decreasing paramagnetism in all three classes of materials.
What happens at the Curie temperature of iron?
When the temperature of iron is at the Curie temperature or higher, then the iron becomes paramagnetic and when the temperature of iron is below the Curie temperature, then it is ferromagnetic. Each element has its own Curie temperature.
What temperature is the Curie point?
770 C.
Metals have a transition temperature, called the Curie point (Tc), at which the magnetic properties are drastically changed. For iron, this temperature is 770 C.
What is the Curie temperature piezoelectric?
The Curie point is the temperature above which the material loses its ferroelectric and piezoelectric behavior.
How is Curie temperature measured?
Modern measurement of the Curie temperature is typically accomplished using some form of magnetometer measuring current induced by the magnetic field emanating from a material or zeroing out the material field with a compensating coil [6, 7].
Why is the Curie temperature such a significant property of magnetic materials?
Materials have different structures of intrinsic magnetic moments that depend on temperature; the Curie temperature is the critical point at which a material’s intrinsic magnetic moments change direction.
What is Curie point for most of the ferromagnetic materials?
about 760℃
For ferromagnetic materials, the saturation magnetization decreases with increases in temperature, and touches a value of zero, at about 760℃, this is called Curie point.
What is the Curie temperature of gadolinium?
Phys., 30, (pt II), 731 (1967) Gadolinium has a Curie Temperature of 293 K. This is equivalent to around 20 degrees Celsius. This makes for a good material in a light based Curie Pendulum. Nickel’s curie point is 627 K, this is equivalent to around 354 degrees Celsius.
What is permalloy made of?
Permalloy was originally discovered by Arnold and Elmen in 1923 whilst working for Bell Laboratories [87 ]. The optimum composition (high permability, zero magnetostriction) for permalloy is Ni 81 Fe 19 and this is the alloy of choice for many applications.
What is the Curie point in physics?
The Curie Point. • Curie point, also called Curie Temperature, temperature at which certain magnetic materials undergo a sharp change in their magnetic properties. • This temperature is named for the French physicist Pierre Curie, who in 1895 discovered the laws that relate some magnetic properties to change in temperature.
What is the Curie temperature of a nickel Bob?
Temperatures of Interest. • Nickel has a Curie Temperature of 627K. • We expect the bob to follow an oscillatory path that orbits the curie point with a period under 10 seconds (from observation of examples).
