What harmonics are present in a square wave?

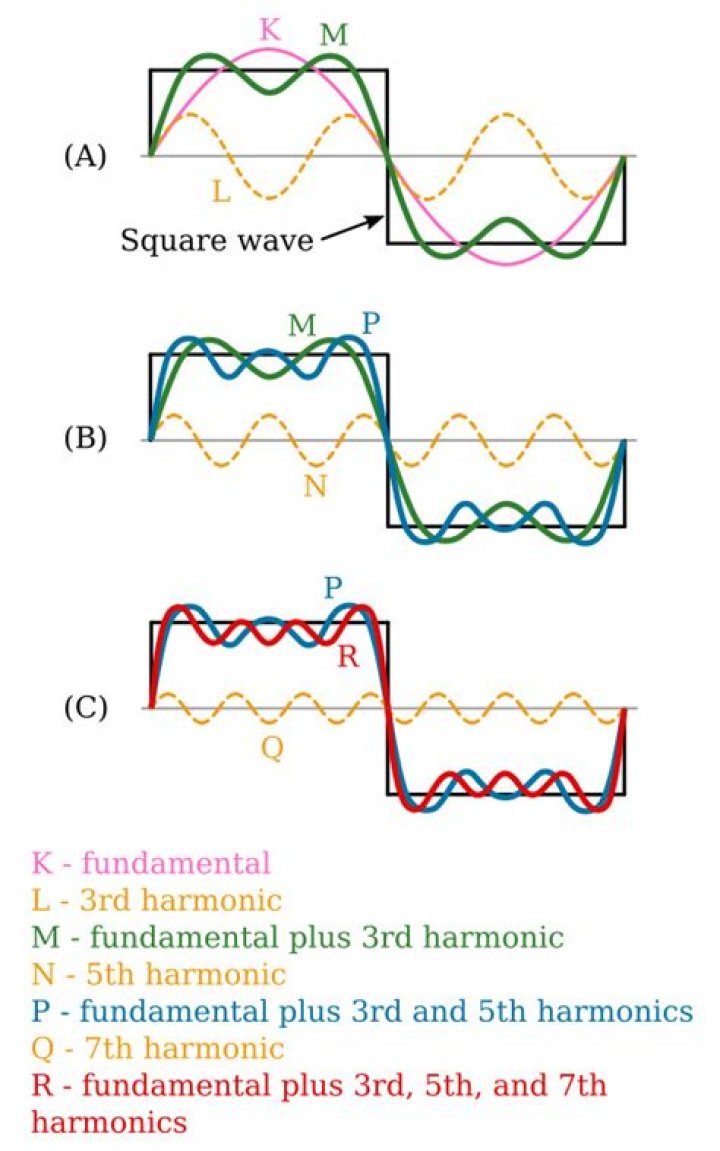

Sum of 1st, 3rd, 5th, and 7th harmonics approximates square wave. Sum of 1st, 3rd, 5th, 7th and 9th harmonics approximates square wave. The end result of adding the first five odd harmonic waveforms together (all at the proper amplitudes, of course) is a close approximation of a square wave.
Does square wave contain harmonics?
The ideal square wave contains only components of odd-integer harmonic frequencies (of the form 2π(2k − 1)f). Sawtooth waves and real-world signals contain all integer harmonics. A curiosity of the convergence of the Fourier series representation of the square wave is the Gibbs phenomenon.
How many harmonics are in a square wave?
Note that only the first six harmonics are shown individually, but 10 harmonics are used to generate the square wave.
Why do square waves only have odd harmonics?
Square wave will have an infinite series of odd harmonics (that is, to make a square wave out of sines you need to add sines of every odd multiple of the fundamental frequency). The harmonics are generated by distorting the sine wave (though you can generate them separately).
Why are there no even harmonics in a square wave?
What’s a theoretically perfect square wave made of? It contains a sine wave fundamental, and all its odd harmonics. The amplitude of each harmonic is 1/n, so the amplitude of the fifth harmonic, for example, would be 1/5 the amplitude of the fundamental. A perfect square wave would have no even harmonics.
Why does a square wave have odd harmonics?
The harmonics of a square wave exist because the rate of change (first derivative) of a square wave consists of very high, sudden peaks; infinitely high spikes, in the limit-case of a so-called perfect square wave. Real physical systems can’t follow such high rates, so the signals get distorted.
Why do square waves have odd harmonics?
All even harmonics shall be zeros. Therefore, what remains to get the inverted output in a form closest to a sine wave is to get red of the dc (so square wave is now alternating positively and negatively) and to get red of the higher order (odd numbered) harmonics.
What is square wave function?
A square wave function, also called a pulse wave, is a periodic waveform consisting of instantaneous transitions between two levels. We consider two cases of square waves that include the digital signal (0,1) and oscillation between (-1,1). Other common levels for the square wave includes -½ and ½.
How do you find the harmonic of a Fourier series?
Even Harmonics. The Fourier series will contain even harmonics if f ( t + π ) = f ( t ) \displaystyle f{{\left({t}+\pi\right)}}= f{{\left({t}\right)}} f(t+π)=f(t). That is, it has period π.
What is the first harmonic of a square wave?
For example, an ideal square wave with 50% duty-cycle and 0 v to 1 v transition has a first harmonic amplitude of 0.63 v. The amplitude of the third harmonic is 0.21 v. We can even calculate the amplitude of the 1001st harmonic.
