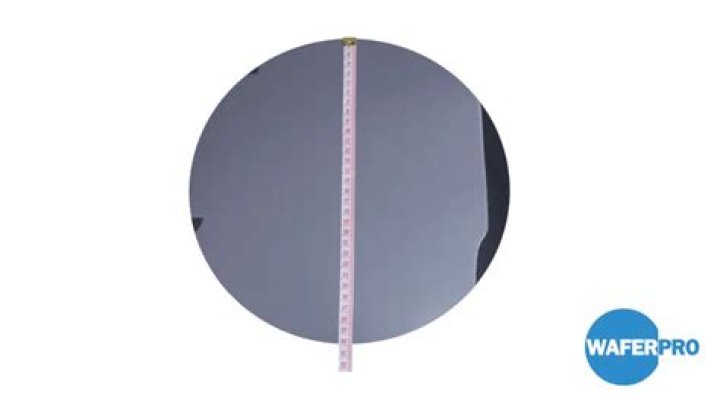

What is a 200 mm wafer?

200mm fabs are older facilities that process chips at mature nodes, which range from 350nm to 90nm. In total, there are more than 200 fabs worldwide that produce chips using 200mm (8-inch) diameter wafers.

What does wafer size mean?

Wafer size refers to the diameter of a wafer and is an important parameter as part of the semiconductor manufacturing process. A larger wafer size enables the fabrication of more dies per wafer which translates into cost reduction in high-volume manufacturing.

How big are silicon wafers?

Silicon wafers are available in a variety of diameters from 25.4 mm (1 inch) to 450 mm (17.72 inches). Semiconductor fabrication plants (also known as fabs) are defined by the diameter of wafers that they are tooled to produce.

How to make silicon wafers?

To make wafers, silicon is purified, melted, and cooled to form an ingot, which is then sliced into discs called wafers. Chips are built simultaneously in a grid formation on the wafer surface in a fabrication facility or “fab.”

What is 300mm wafer?

A 300mm wafer is actually 11.8 inch.

How many 200mm fabs are there?

The ‘200mm Fab Outlook to 2024’ tracks worldwide more than 340 fabs and lines by over 160 companies and organizations. This report provides insight to current business activity in 200mm manufacturing and informs business planning and investment.

What is 300 mm wafer?

11.8 inch
A 300mm wafer is actually 11.8 inch.

How many chips are in a 300mm wafer?

For info, around 600 A13 chips fit on a 300mm wafer. Means Apple is paying around $29 per chip.

What are 8 inch wafers used for?

ICs in commonly-used DC-DC converters, motor drivers, and battery chargers typically use 8-inch wafers. The capacity of 8-inch fabs began to increase in the late 1990s. Most fabs are now completely depreciated and their fixed costs are relatively low.

How long does it take to grow silicon?

This begins with the growth of a silicon ingot. Growing a silicon ingot can take anywhere from one week to one month, depending on many factors, including size, quality, and the specification.

How many chips are in a 300 mm wafer?

For info, around 600 A13 chips fit on a 300mm wafer.

What is the size of semiconductor?

Semiconductor size – or node size – is indicated in nanometer, a unit that equals one billionth of a meter (or 0.000000001m). Chips with 14 and 10 nanometers are currently in mass production, but the industry continues to aim for smaller node sizes.
