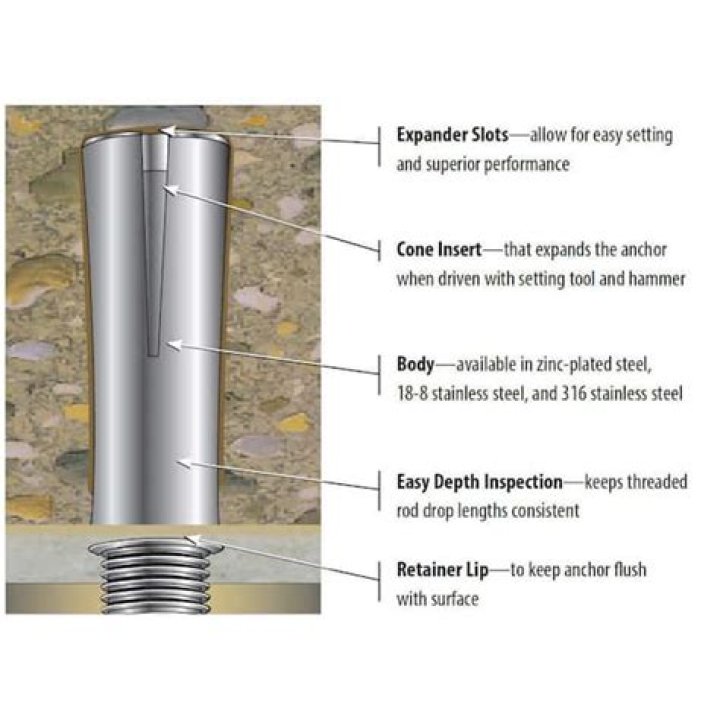

What is a 3/8 drop in anchor rated for?
A 3/8″ diameter threaded rod or a bolt can be inserted into it with a maximum torque of 10 ft. lbs.
How much weight do concrete anchors hold?
Anchor Types Overview Masonry and concrete anchor types are considered light-duty, medium-duty or heavy-duty, based on how much weight they can support. Light-duty anchors are good for wall hangings that weigh up to 50 pounds. Medium-duty anchors are good for wall hangings that weigh up to 200 pounds.
How strong are concrete anchors?
Sleeve anchors have either a screw head (Photo 4) or a bolt head. These concrete anchor bolts, or bolt anchors for wood, are available in several sizes and will hold up to 200 lbs. The sleeves pinch the sides of the predrilled hole and get tighter as you tighten the screw or bolt.
What size anchor do I need for a 3/8 hole?
Bit size = 3/8” (same as anchor diameter) Drill the hole at least 1/2″ deeper than the length of the anchor.
How much weight can a 3/8 sleeve hold?
Technical Specifications for Sleeve Anchors
| Size | Minimum Embedment | Pull-Out (lbs.) |
|---|---|---|
| 1/4” | 1” | 682 |
| 5/16” | 1” | 903 |
| 3/8” | 1-1/4” | 1406 |
| 1/2” | 1-1/2” | 1676 |
How much weight can Tapcon anchors hold?
*A safety factor of 4:1 or 25% of ultimate pullout/shear value is generally accepted as a safe working load. 340 lbs.
What’s the strongest concrete anchor?
Wedge anchors
What are the strongest concrete anchors? Wedge anchors are typically the strongest anchors, but not every application requires a heavy-duty anchor. Some will do just fine with a plastic wall anchor or a nail-in version.
How strong is a 3/8 wedge anchor?
Technical Specifications for Wedge Anchors
| Size | Minimum Embedment | Pull-Out (lbs.) |
|---|---|---|
| 3/8” | 1-1/2” | 1223 |
| 1/2” | 2-1/4” | 2999 |
| 5/8” | 2-3/4” | 3749 |
| 3/4” | 3-1/4” | 4978 |
What are the strongest concrete anchors?
What are the strongest concrete anchors? Wedge anchors are typically the strongest anchors, but not every application requires a heavy-duty anchor. Some will do just fine with a plastic wall anchor or a nail-in version.
What does minimum embedment mean?
Minimum embedment- the minimum distance that an anchor should be placed in the base material to achieve holding values.
