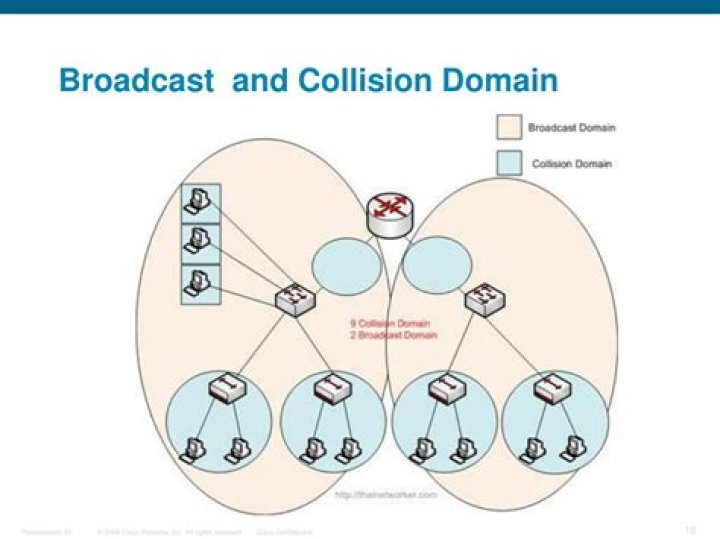

What is a broadcast domain and collision domain?

A Broadcast domain is a type of Domain wherein traffic flows all over the network. The Collision domain refers to a set of devices in which packet collision could occur. Broadcast domain refers to a logical set of reachable computer systems without using a router.

What is collision in broadcast media?

A collision occurs when two devices send a packet at the same time on the shared network segment. The packets collide and both devices must send the packets again, which reduces network efficiency.

How many collision and broadcast domains are there?

So, There are 2 broadcast domains & 5 Collision domains. Routers Provides A separate Broadcast Domain for each interface.

Is hub a collision domain?

All the devices connected to a hub are in a single collision and single broadcast domain. Remember, hubs do not segment a network, they just connect network segments.

Do routers have collision domains?

Routers do not pass broadcast traffic, so they create multiple broadcast domains. Routers also create multiple collision domains. Traffic between the router and any other device connected to the router (such as a hub, switch, or another router) creates a separate collision domain.

How do I remove collision from Ethernet?

On Ethernet using shared media, collisions are resolved using carrier sense multiple access with collision detection (CSMA/CD) in which the competing packets are discarded and re-sent one at a time.

How do you fix a collision domain?

To reduce a collision domain, physically segment the network by reducing the number of hosts that share a network and create more than one physical network. Segmenting the network physically creates separate networks that cannot communicate with each other.

What is the difference between collision domain and broadcast domain?

Each port on a bridge, a switch or router is in a seperate collision domain. A broadcast domain is the domain in which a broadcast is forwarded. A broadcast domain contains all devices that can reach each other at the data link layer (OSI layer 2) by using broadcast.

How many collision domains do we have?

We have 6 collision domains in the example above. Remember, each port on a hub is in the same collision domain. Each port on a bridge, a switch or router is in a seperate collision domain. A broadcast domain is the domain in which a broadcast is forwarded.

What is collision domain in Linux?

Collision domain. A collision domain is, as the name implies, the part of a network where packet collisions can occur. A collision occurs when two devices send a packet at the same time on the shared network segment. The packets collide and both devices must send the packets again, which reduces network efficiency.

What is broadbroad broadcast domain?

Broadcast domain. A broadcast domain is the domain in which a broadcast is forwarded. A broadcast domain contains all devices that can reach each other at the data link layer (OSI layer 2) by using broadcast. All ports on a hub or a switch are by default in the same broadcast domain.
