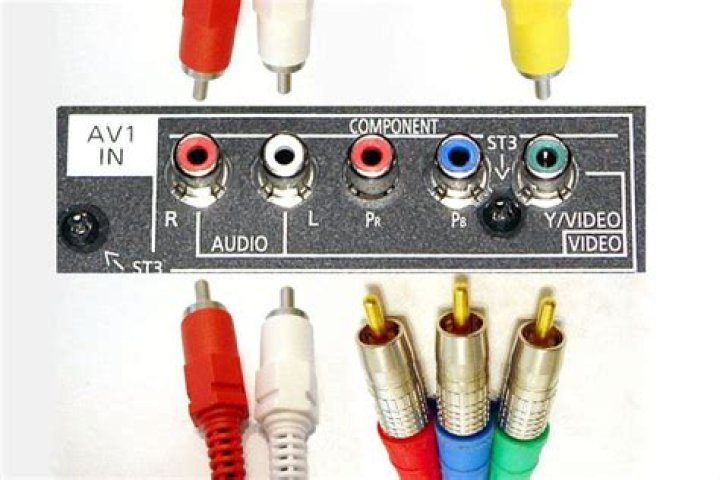

What is a composite video connector?

A composite video connection transmits a basic analog video signal between devices. It sends standard-definition video only – and does not carry an audio signal. As mentioned above, if you use a composite video signal for the picture, then you will need a separate connection to hear the audio.

What is composite output?

Composite video is an analog video signal format that carries standard-definition video (typically at 480i or 576i resolution) as a single channel. Video information is encoded on one channel, unlike the higher-quality S-video (two channels) and the even higher-quality component video (three or more channels).

What does CVBS output mean?

Composite Video
CVBS or Composite Video Blanking and Sync is the conventional analog signal delivered through an analog BNC connector. In English, that basically means a pair of wires can transmit video and power from the camera to the recorder producing video surveillance. Think of CVBS being like windows 7.

Is composite video better?

Composite video is an analog signal, and carries the video or picture through a single, low quality signal. This video signal is of far better quality than what composite video has to offer.

Is composite or S-video better?

S-Video (also known as separate video and Y/C) is a signaling standard for standard definition video, typically 480i or 576i. By separating the black-and-white and coloring signals, it achieves better image quality than composite video, but has lower color resolution than component video.

What are the constituents of composite video signal?

Composite color video signals are comprised of three components:

• The luminance (luma), Y, signal which contains the intensity information.
• The chrominance (chroma), C, signal which contains the color information.
• The synchronization (sync), S, signal which controls the horizontal line frequency.

Is composite video good?

Composite video is an analog signal, and carries the video or picture through a single, low quality signal. In comparison, S-video carries the picture through two signals, namely the chroma (colour) and luma (luminance). This video signal is of far better quality than what composite video has to offer.
