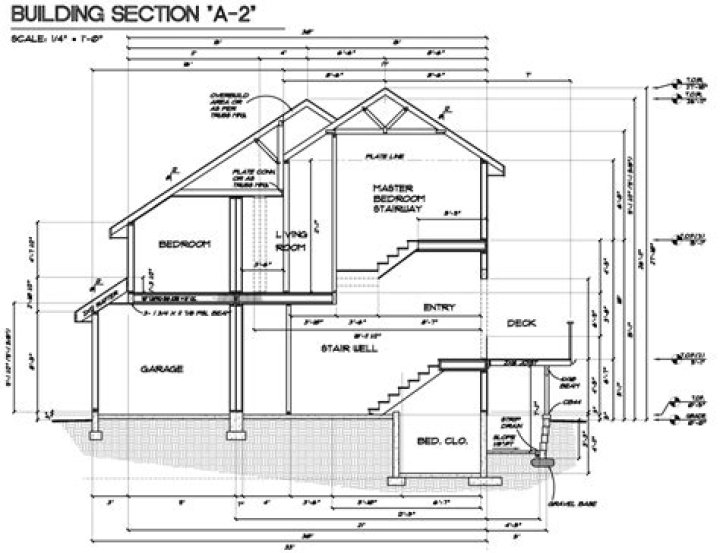

What is a cross sectional drawing?

Cross sections, or sections, as they’re commonly called, are architectural drawings that are orthographic projections of structures with a cut transecting them. This type of projection shows a three-dimensional drawing in a two-dimensional view.

What is the sectional view of a drawing?

A sectional view or a section looks inside an object. Sections are used to clarify the interior construction of a part that cannot be clearly described by hidden lines in exterior views. By taking an imaginary cut through the object and removing a portion, the inside features may be seen more clearly.

What view does a cross-section show?

A full & local cross section shows a full cross-sectional view with local cross sections applied within it, as shown below. A revolved view is a cross section of an existing view, revolved 90 degrees around a cutting plane projection.

What is a sectional front view drawing?

∎ A section view is a view used on a drawing to. show an area or hidden part of an object by. cutting away or removing some of that object. ∎ The cut line is called a “cutting plane”, and.

What is cross section formula?

In order to calculate the area of a cross-section, you need to look at them as basic shapes. For instance, a tube is a concentric circle. Therefore, for a tube with inner and outer diameter ( d and D ) having thickness t , the area of cross-section can be written as: AC = π * (D2 – d2) / 4.

What is sectional plan?

Sectional Plan means the provisional Sectional Plan to be drawn in respect of the Land and Building in terms of the provisions of the Sectional Titles Act and which is to be approved by the Surveyor General; Sample 2. Sample 3.

What is sectional top view?

The view obtained by cutting an object with an imaginary cutting plane is called Sectional View. The surface produced by cutting the object by the section plane is called Section. It is indicated by thin section lines uniforemly spaced, generally at an angle of 45′.

How is a cross-sectional view obtained?

Using cross-sectional planes, you can exclude parts of your scene and thus provide dissected views of your scenes. Such planes can be freely moved to slice through a model in the X, Y, and Z planes. To obtain the exact cross-sectional views you require, you can rotate the planes.

What is cross section of sectional surface?

The cross-sectional area is the area of a two-dimensional shape that is obtained when a three-dimensional object – such as a cylinder – is sliced perpendicular to some specified axis at a point. For example, the cross-section of a cylinder – when sliced parallel to its base – is a circle.

What is Section in drawing?

A section view is a view used on a drawing to show an area or hidden part of an object by cutting away or removing some of that object. The cut line is called a “cutting plane”, and can be done in several ways.

What is cross section drawing?

Section or cross section drawings show a product as if it has been sliced in half. The imaginary cut is called a section plane which is sometimes represented by a line consisting of long and short dashes. A section drawing shows how a product is constructed.

What is cross drawing?

Cross draw is a style of carry that has been popular with both law enforcement and civilian concealed carriers for more than a century. Cowboys were some of the first folks to practice cross draw due to their mounted style of life.

What is a sectional drawing?

A ‘section drawing’, ‘section’ or ‘sectional drawing’ shows a view of a structure as though it had been sliced in half or cut along another imaginary plane.

What is a drawing section?

section drawing definition. A kind of drawing that visualizes what a section of a structure will appear to be after being cut by a vertical plane. A.
