What is a high limit aquastat?
High-Limit Setting The other primary control on the aquastat is the high limit, which is the highest allowable hot water temperature before the controller shuts down the boiler. This maintains a general set temperature for the water inside the boiler.
What is a boiler high limit?
The high limit setting is the maximum temperature the boiler can attain. When the high limit set point is reached the burner turns off.
Do you have to drain boiler to change aquastat?
Yes, you WILL have to drain the boiler to change the pump.
What are the two functions of the high limit aquastat?
In hydronic heating we use both – the aquastat to control boiler water temperature, and the thermostat to control room temperature. There are two parts to the word – “aqua” and “stat.” Aqua means water. Stat means switch.
What is the purpose of the low limit aquastat?
The low limit is intended for tankless domestic hot water—it ensures that boiler water is always warm enough to heat the domestic hot water. Many aquastats also have a differential (“diff”) control which determines the size of the range around the “low” and/or “high” controls.
What should boiler high limit be?
The pressure should be between 12 and 15 pounds per square inch (psi) when the temperature is between 70 to 100 degrees F. The water pressure should be between 15 and 25 psi when the temperature is up to 240 degrees. The high limit switch should turn the boiler off when the steam pressure is above 10 psi.
What should a boiler high limit be set at?
The average setting for a gas-powered hot water boiler is 180°F. This provides the appropriate level needed for most cold weather temperatures. If you can raise the temperature manually, do not set it any higher than 210°F (which is often the limit), and try to remain down at 190°F if you need the extra heat.
What is a Aquastat control?

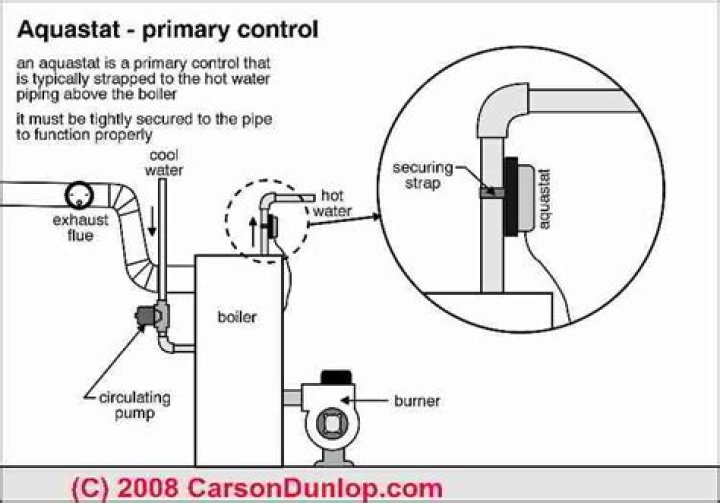

An aquastat is a device installed in hydronic water systems for the purpose of controlling temperature within the boiler. An aquastat is similar to the furnace limit switch in operation, maintaining a safe operating temperature for the central heating unit.
What happens if you set the aquastat to too high?
Watch out: Setting the “HI” too high on the aquastat can result in over-temperature in the heating boiler and can result in dumping water and temperature and pressure at the relief valve. If your TP valve was not leaking before and it begins to drip when you set up the HI to 200 F, step the HI back to 195 and try that setting.
What temperature should my aquastat be set at?
The “HI” on a combination heating control like this aquastat is usually set by the heating service technician to a spot between 180 °F and 200 °F. Or the “rule of thumb” fellows just park it at about “180” °F as you can see in our photo.
What is an aquastat on a heating boiler?
Here we explain how to choose the best settings for a heating boiler aquastat – the combination control that sets boiler temperature and may also control hot water production via a tankless coil on the heating boiler. We also give advice on how to set the aquastat controls if heating with a woodstove.
Can we adjust the heating aquastat control to save money?
But with a little thought, we can adjust these HI LO DIFF settings and thus set the heating aquastat control so as to save a bit more on heating cost, and/or we can set the control to give us a bit more hot water where a tankless coil is installed.
