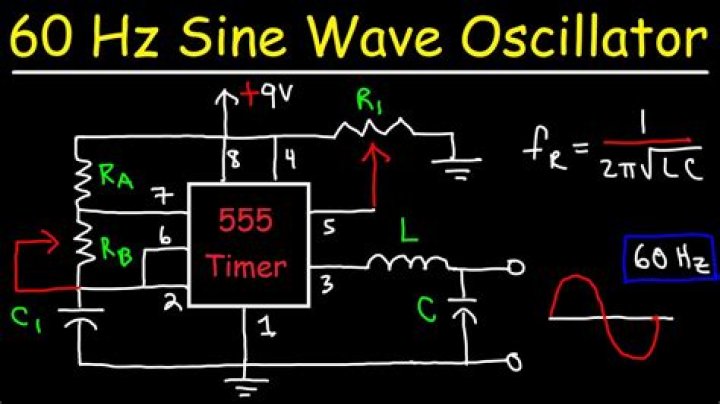

What is a sine wave oscillator?
Sine wave oscillators are used as references or test waveforms by many circuits. A pure sine wave has only a single or fundamental frequency—ideally no harmonics are present. Thus, a sine wave may be the input to a device or circuit, with the output harmonics measured to determine the amount of distortion.
Which oscillator generates sine waves?
Sinusoidal Oscillators − The oscillators that produce an output having a sine waveform are called sinusoidal or harmonic oscillators.
How many Hz is a sine wave?
1000Hz
The number of times the sine wave goes through a complete cycle in the space of 1 second is called the frequency. Indeed the unit used to be cycles per second, but now the unit of measurement is hertz (Hz). A frequency of 1000Hz, or 1 kHz, means that the sine wave goes through 1000 complete cycles in 1 s.
Do all oscillators generate sine wave?
A sinewave is actually a very simple waveform though. It’s just the rotation of a circle projected on the time axis. A circle is a very simple, energy-conserving shape. Well, firstly the premise of the question is wrong – an oscillator does not ALWAYS produce a sinewave.
How do you find a sine wave?
A general form of a sinusoidal wave is y(x,t)=Asin(kx−ωt+ϕ) y ( x , t ) = A sin ( kx − ω t + ϕ ) , where A is the amplitude of the wave, ω is the wave’s angular frequency, k is the wavenumber, and ϕ is the phase of the sine wave given in radians.
Which oscillator is used for low frequency?
A low-frequency oscillator (LFO) is an electronic oscillator that generates a frequency below approximately 20 Hz. This term is typically used in the field of audio synthesizers, to distinguish it from an audio frequency oscillator….Negative-resistance oscillator.
| Device | Frequency |
|---|---|
| Gyrotron tube | ~600 GHz |
Which oscillator does not produce sinusoidal wave?
relaxation oscillator
A relaxation oscillator is a nonlinear electronic oscillator circuit that produces a non-sinusoidal repetitive output signal, such as a triangle wave or square wave outputs by discharging of output voltages through the capacitor.
What is a half sine wave?
Half-Sine Wave Modulation Technique a New Method for Generating Variable Frequency Sinusoidal Current. In the proposed method, each half-cycle of the fundamental frequency consists of a number of half-sine waves with different amplitudes and widths, which are arranged side-by-side.
How is a sine wave generated?
As the coil rotates the voltage decreases according to the sine of the angle until the conductor is parallel to the magnetic field. Further rotation then increases the voltage until once again it is at a maximum (but in the opposite direction). For each revolution a complete sine wave is generated.
What does the oscillator do?
Oscillators convert direct current (DC) from a power supply to an alternating current (AC) signal. They are widely used in many electronic devices ranging from simplest clock generators to digital instruments (like calculators) and complex computers and peripherals etc.
How to make a sine wave?
A popular way to make a sine wave oscillator is to use an RC network to produce a 180 degree phase shift to use in the feedback path of an inverting amplifier. Setting the gain of the amplifier to offset the RC network attenuation will produce oscillation.
What is the difference between oscillator and amplifier?
The key difference between amplifier and oscillator is that the oscillator acts as a source while the amplifier acts as a multiplier. An amplifier is a device which increases the amplitude of a certain electronic signal. The term oscillation is defined as the periodic motion around a fixed point.
What is the equation of sine wave?
Equation of a wave is a = a°sin(ωt – kx + φ) where φ is the phase of a wave. if 2 waves with phases φ1 and φ2 interfere, show how the intensity I =a² varies as a function of the phase difference φ1 – φ2.
What is an example of a sine wave?
A sine wave, or sinusoid, is a mathematical construct (specifically a function) used to model and predict a variety of cyclic phenomena, including the rise and fall of tides, the oscillation of a spring, the incident light hitting the ground from the Sun over the course of a day, the intensity of a sound wave, and millions of other examples.
