What is a steel lintel?
A lintel is a structural horizontal support used to span an opening in a wall or between two vertical supports. Steel lintels are generally made from pre-galvanised steel which is cut and either roll-formed or pressed into the required shape.
What are the different types of lintels?
Different types of lintels used in the construction industry are as follows :
- Stone Lintel.
- Wooden Lintel.
- Reinforced Concrete Lintel.
- Brick Lintel.
- Steel Lintel.
- Reinforced Brick Lintel.
What is at Bar lintel?
Traditional T-Bar Galintel Traditional T-Bars are fully machine welded structural lintel beam manufactured in Australia using BlueScope steel. They are traditional steel sections used in the support of brickwork over large clear openings and are not reliant on composite action.
What is lintels and types of lintels?
Lintels are classified into the following types according to the elements of their development:
- Timber lintel.
- Stone lintel.
- Reinforced concrete lintel.
- Brick lintel.
- Reinforced brick lintel.
- Steel lintel.
How thick are steel lintels?
Steel Lintels Sizes Steel angle lintels should be at least 1/4 in. (6 mm) thick with a horizontal leg of at least 3 1/2 in. (90 mm) for use with nominal 4 in.

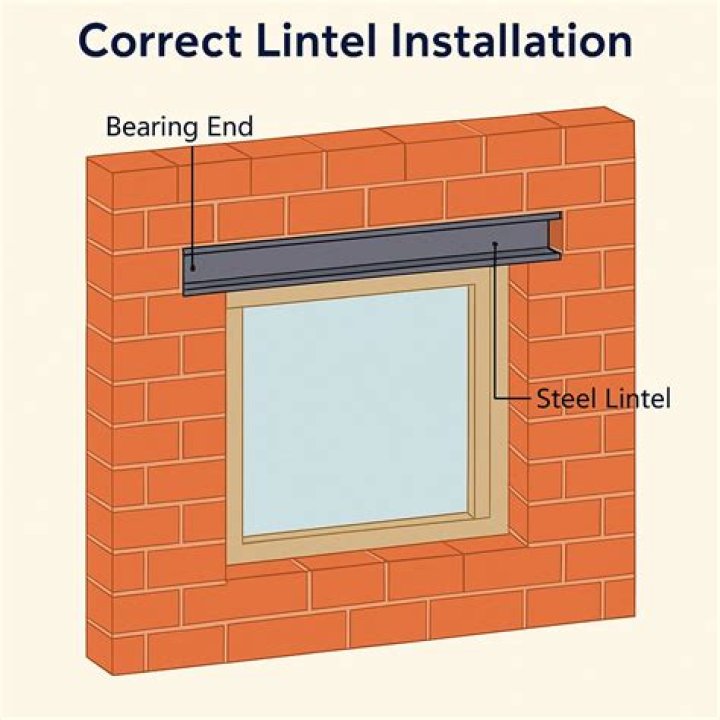

How are steel lintels held into position?
Place the steel lintel into position at the top of your opening, so that it slides into the slot you have created, and lies flat against the front of the wall. Use your hammer or small sledge to drive the lintel into position.
How can you tell if a lintel is concrete or steel?
Have a look at the end of the drill bit and see if it has any filings on it. this would indicate a steel lintel. You will need a high speed twist drill for this. You may also be hitting stell reinforcing in a concrete lintel.
What is meant by lintels?
Definition of lintel : a horizontal architectural member spanning and usually carrying the load above an opening.
Can you drill into steel lintel?
Steel lintels are even more difficult to fix to as, once you have drilled through the plaster and reached the steel lintel, you must then swap drill bits for a high speed steel bit and then use self tapping screws to fix the item you wish to hang.
How far should a steel lintel overhang?
In accordance with BS EN 1996-2:2006 and NHBC requirements all external wall lintels MUST be installed with a flexible damp proof course with the exception of those adequately protected by an eaves overhang or similar form of protection. Masonry should not overhang any flange by more than 25mm.
What is a steel flat bar used for?
Steel Flat Bar. Hot Rolled Steel Flat, is widely used for all general fabrication and repairs in industrial maintenance, agricultural implements, transportation equipment, etc. HR A569 Steel Flat is stripped from coil and A36 is rolled as bars.
When are steel lintels suitable for lintel construction?
Steel lintels can be suitable when the superimposed loads are heavy, and the opening gaps are significant. Steel lintels are preferable when the depth of lintel plays an essential role because the designer cannot ignore the depth of reinforced concrete lintels due to heavy loads.
What is the difference between brick lintels and reinforcement bars?
Heavy loadings and larger span length are the problems for brick lintels. These can be overcome by using the reinforcement bars. Reinforced brick lintels thus provide more support than the brick lintels. The depth of the reinforced brick lintels is equal to 10 cm. or multiple of 10 cm (or one brick thickness).
How do you determine the width of a lintel?
Lintel width should be the same as wall width. The depth of the lintel depends on the length of the span and the loading’s magnitude. Concrete, though strong in compression, is fragile to tensile stress, so main reinforcement bars are used at the bottom to resist the tensile stress. Half of these bars are cranked at the ends.
