What is a two way slab?

Two way slab is a slab supported by beams on all the four sides and the loads are carried by the supports along with both directions, it is known as two way slab. In two way slab, the ratio of longer span (l) to shorter span (b) is less than 2. In two way slabs, the load will be carried in both the directions.

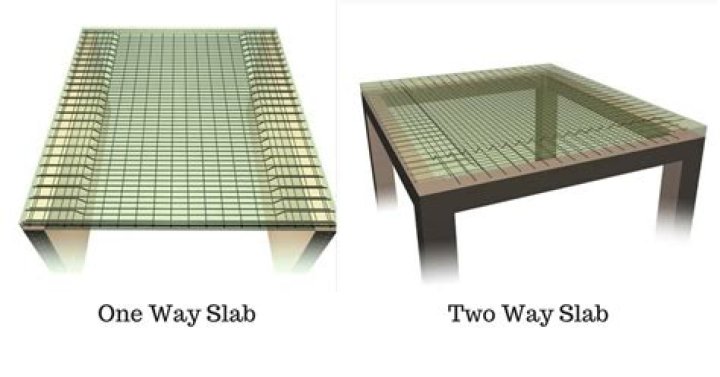

What is the difference between 1 way and 2 way slab?

In one way slab, the load is carried in one direction perpendicular to the supporting beam. In two way slab, the load is carried in both directions. In two-way slab, the crank is provided in four directions. If L/b the ratio is greater than or equal 2 or then it is considered a one-way slab.

What are the two types of slabs?

The major types of concrete slabs used in construction are one-way joist slab, flat slab, flat plate, waffle slab, hollow core slab, precast slab, slabs on grade, hardy slab, and composite slab. 2. What are slab on grade or ground slab? The slab which is cast on the surface of the earth is called a Ground slab.

How is two way slab calculated?

A two-way slab is supported on all its four sides by beams. If the longer span of the slab is ly and the shorter span is lx, then for a two-way slab, ly/lx is less than 2. If the ratio is greater than 2, it is identified as a one-way slab. The two-way slabs distribute the loads in both directions.

Why alternate bars are bent up in slab?

To resist Hogging (Negative Bending Moment) at supports. To counter the risk of the failure of the slabs. By providing crank the strength of slab increased. …

Why stirrups are not provided in slabs?

Stirrups are usually used to maintain the integrity of the concrete’s shape, to stop it from cracking along the sides from bending moment pressure, temperature, or otherwise. The real reason we don’t use stirrups for a slab? THEY DON’T FIT! In a 20 Inch beam, they are vital to keeping the concrete in place.

What is a mother slab?

mother slab is a common method to drain out storm water from terrace. And we know there is a joint between old and new concrete. So, in every joint a bonding agent is required between old and new concrete. That too should have a property to adhere wet concrete to old concrete.

Where do we use one way slab?

Types of Designs for One-way Slab

• There are mainly three types of designs for one-way slab.
• In one-way solid slab (with beams) system, the slab is supported on beams.
• One-way Ribbed Slab (with beams)system is used for the office buildings (low rise), parking structures, and warehouses.

What is the minimum depth of two way slab?

Moreover, the minimum thickness of any two way slab without interior beams should not be less than the following: For slabs without drop panel 125 mm. For slabs with drop panel 100 mm.
