What is an advantage of wet barrel hydrants?
This valve must be opened to allow water to flow into the hydrant. Avoids frozen water in cold climates. No water loss if damaged by vehicles. Removable outlets for maintenance.
How does a wet barrel fire hydrant work?
Wet Barrel Hydrants Wet barrel fire hydrant mechanical parts are located above the ground. Outlet valves and nozzles found here work independently. In this system, the main water valve is located below the ground to prevent the water from freezing in the winter.

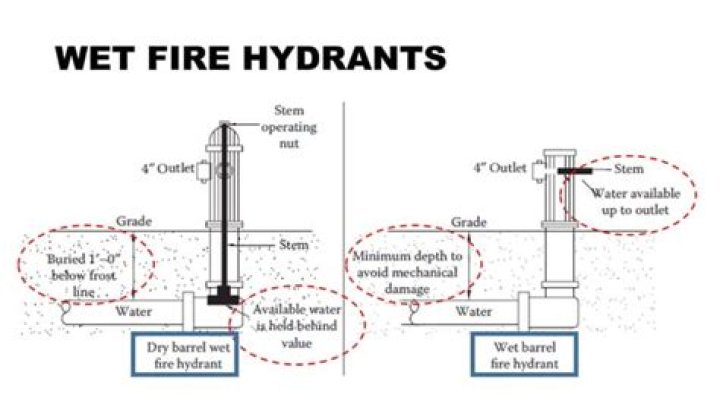

What is the difference between dry barrel and wet barrel hydrants?
Fire Hydrants fall within one of two types; wet and dry barrel. Dry Barrel, as implied, is not water-filled until the hydrant valve is opened. These hydrants have one or more operating stems which run horizontal at each outlet. As implied, wet barrel hydrants are water-filled at all times.
Do wet barrel hydrants have main valves?
Wet Barrel Hydrants A wet barrel hydrant has a main valve7 located on each outlet nozzle. The entire hydrant is full of water at all times.
Where is the valve located on a wet barrel hydrant?
Wet Barrel Hydrants The shut-off valves are above ground, so there’s water in the barrel even when the hydrant is not in use. Each outlet has a valve that operates independently, and the mechanical parts are easy to access above ground and can be adjusted to the proper height without expensive modifications.
Where is the main valve located in a dry barrel hydrant?
In a dry barrel hydrant, a single main valve is located in the base of the hydrant adjacent to the inlet connection. In addition, the dry barrel hydrant is equipped with an automatically operated drain valve.
How deep do fire hydrants go?
3 Set not less than 3 feet (914 mm) deep in a concrete footing of not less than a 15-inch (381 mm) diameter.
Why do fire hydrants not freeze?
These drain valves are closed when the hydrant is fully open. This means that when water is no longer needed, and the hydrant valve is closed, it will drain, and not freeze solid.
What is the recommended minimum pressure for water coming from a hydrant?
While a residual pressure of 20 psi is the general rule of thumb, NFPA allows for the available flow rate from a hydrant to be determined at residual pressures less than 20 psi in low-pressure areas.
Which type of hydrant has water in the barrel?
Wet Barrel Hydrants
Wet Barrel Hydrants The shut-off valves are above ground, so there’s water in the barrel even when the hydrant is not in use. Each outlet has a valve that operates independently, and the mechanical parts are easy to access above ground and can be adjusted to the proper height without expensive modifications.
What are the different types of fire hydrant?
There are two basic types of fire hydrants, wet barrel and dry barrel. Both are attached to the water main, the same water main that supplies water to homes in the community. The wet barrel fire hydrant has a valve opposite the opening.
What is the price of a fire hydrant?
A new fire hydrant can cost anywhere between $1,000 to $2,500 , depending on the make and model, size and where it’s purchased. This will not include the installation.
What is wet barrels?
Wet Barrels Term used in oil trading to refer to a cargo of physical oil which has been allocated a date for loading onto a tanker as opposed to paper barrels, or non-physical oil. Also known as a wet cargo. See also: Crude Oil, Dated Brent
What is a wet hydrant?
In warm areas, hydrants are used with one or more valves in the above-ground portion. Unlike with cold-weather hydrants, it is possible to turn the water supply on and off to each port. This style is known as a “wet barrel” hydrant.
