What is an amplifier choke?
A choke is an iron core inductor used in the power supply of a guitar amp as a filtering element. Their purpose in guitar amp filter supplies is to smooth out the ripple in the rectified DC. In some guitar amplifiers a high wattage resistor is used instead of a choke.
Where does the RF choke go?
This operator says an RF choke goes near the feedpoint (nearest antenna) while the instructions that came with the choke says “The RF Isolator should be placed close to the transmitter, in line with the coax feeding an antenna.”
What is the purpose of an RF choke in a line extender?

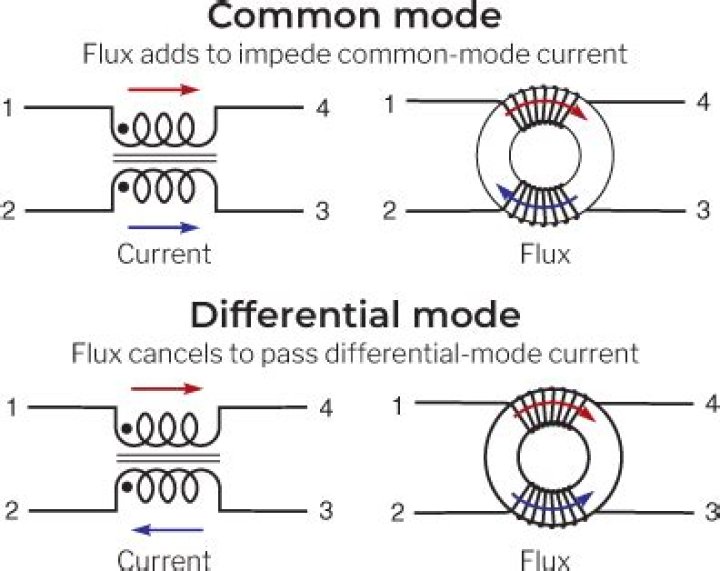

In a supply line a choke is a component ( [lossy] inductance) to block RF frequency signals and to pass DC or lower frequency signal. The choke function is also used to block, impede, reduce, etc common mode current on coaxial transmission lines.
What is difference between choke and transformer?
The difference is basically in usage. A choke uses the inductance as a primary characteristic to affect a signal. In a transformer the inductance is secondary and is just to establish the magnetizing current with the transformer’s primary purpose being to transform one signal level (or impedance) to another.
Does a choke have polarity?
A choke might have a polarity so that the magnetic flux lines are in a certain direction relative to the chassis or some wires nearby. Also, the core might possibly be designed to react a certain way to the movement of flux in one direction or the other.
Where do you put a ferrite choke?
Installing Ferrite Beads. Place the bead on the wire about 2 inches (5.1 cm) from the device. The bead should work regardless of its position on the wire, but it may work better at reducing RFI if placed closer to the source. It can even go up against the device without hurting anything.
What is a RF choke, what is it useful for?
The main purpose of an RF choke is very simple. It is used to prevent stray RF from traveling back down the surface of the coax shield conductor, and into the shack and your equipment. This problem can cause all kinds of troubles in the radio room.
What is the difference between RF choke and inductor?
Inductors and RF chokes are basically the same type of electrical components . The difference in design is related to the function the device will perform in a circuit. Most engineers are more familiar with inductors – some think both devices can be used interchangeably – that are prevalent in frequency selective systems, such as a tuner for radio receivers or filters.
What is a RF choke filter?
When used in RF (Radio Frequency) applications, chokes are designed to pass only DC and exclusively prevent everything else from going through. Chokes are employed in various electronic filters to separate signals of different frequencies, blocking or decoupling higher frequencies.
What is an inductor choke?
A Inductor choke can be defined as the inductor, which is used to block or choke higher frequency AC (alternating current), and thus allow DC (direct current) to flow in an electronic circuit. The name choke is not restricted for each case. It is used when an inductor is being applied for blocking or decoupling higher frequencies.
