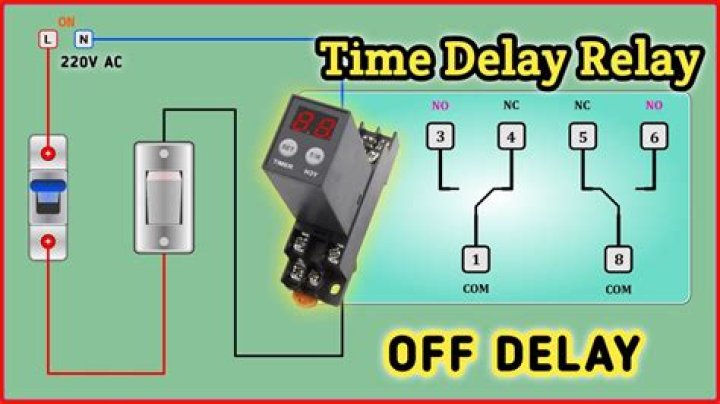

What is an off delay timer relay?

8 products. Time-delay relays have timer circuits that control the opening or closing of contacts in a device, so they can turn equipment on or off at specific times.

How does an off delay timer relay work?

Upon application of input voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the time delay (t1) begins. At the end of the time delay (t1), the output is energized. When the trigger is removed, the output contacts remain energized for the time delay (t2).

How does a delay on make timer work?

HOW IT WORKS: Immediately upon application of power, the Delay on Break timer enables circuit operation. Once power is interrupted, the circuit opens for the time set on the dial. After the time period elapses, the circuit closes, allowing the protected motor or compressor to start.

What do you mean by on delay and off delay timers?

After the input is turned on there is a delay before the output is turned on. After the input is turned off there is a delay before the output is turned off.

What is a time delay relay used for?

The purpose of time-delay relays is to start or stop currents from moving in coils and armatures, the moving parts of electrical mechanisms. They are designed to allow electrical circuits to release at certain times. These types of relays are triggered either by the opening and closing of a signal or by input currents.

Why would an off delay timer be used?

Off-delay timers An output is de-energized at the end of the time delay period. If the trigger is applied during the delay, it will reset. Off-delay timers can be used in air-conditioning systems to hold the blower motor in operation for a specific time period after the thermostat has turned the cooling compressor off.

What is a true off delay timer?

Functions of a Time Delay Relay On-delay timers. Normally open, on-delay timers start timing when the input voltage (power) is applied. Off-delay timers. Off-delay timers are ready to accept the trigger when the input voltage is applied. Interval-on-operate. Flashers. Repeat Cycle.

What is a delay timer switch?

In the most basic form, a time delay switch is a switch linked to a timer which can be set by the user. When the user activates the switch, the timer goes into effect, determining when the light or appliance should be cycled on and off.

What is a time delay switch?

Time delay switches (also known as time lag switches) switch on the connected appliance for a pre-set length of time in order to save energy. This reduces the impact of forgetting to turn off the lights, heating or ventilation.
