What is buckling length factor?
Members Subjected to Compression In order to use the design rules developed for buckling of a pin-ended column in situations where a column is restrained at its ends, the actual length of the column (l) is replaced by its effective length le = kel where ke is called the effective length factor.
What determines the buckling length of a compressed element?
The elasticity of the material of the column and not the compressive strength of the material of the column determines the column’s buckling load. The boundary conditions determine the mode of bending of the column and the distance between inflection points on the displacement curve of the deflected column.
What is buckling equivalent length?
The equivalent or effective length is defined as the distance between two adjacent points of contra flexure on the column. It is the point where there is maximum bending moment experienced by the column.
How do you determine buckling?
The Euler column formula predicts the critical buckling load of a long column with pinned ends. The Euler formula is P cr = π 2 ⋅ E ⋅ I L 2 where E is the modulus of elasticity in (force/length2), I is the moment of inertia (length4), L is the length of the column.
What is difference between buckling and bending?
Bending is form of stress when a load is applied perpendicular to the long axis of a beam/column. The load causes the beam/column to bend hence the name. Buckling is a form of failure when the beam or column is subjected to a load which exceeds it’s tensile strength parallel to its long axis.
What is difference between bending and buckling?
So, the difference between bending and buckling is that in bending, the beam undergoes internal stresses but then recovers back after the load is removed. While Buckling is a permanent failure of the structure.
What is the axis of buckling?
buckling is characterized by a distorted, or buckled, longitudinal axis of the member. In local buckling, the axis of the member is not distorted, but the strength of the cross section is compromised by the buckling of a component of the cross section.
What is buckling of a column?
Buckling is the failure mode of a structural member experiencing high compressive stresses that cause a sudden sideways deflection. Columns are usually subjected to buckling checks because compressive or axial forces are responsible for buckling and these are common in columns rather than beams.

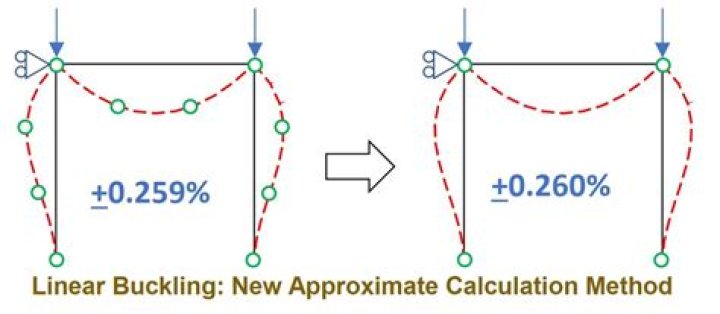

What is a buckling analysis?
Buckling Analysis is a method to identify buckling load-critical load at which structure gets unstable and reflects the characteristic shape related to a structure’s buckled response. There are two approaches predominantly adopted in mechanical and structural programs to be able to forecast buckling load and buckling shape.
