What is CMOS analog switch?
CMOS analog switches have become ubiquitous on the. inputs and outputs of many electronic systems. They may. be used to select between multiple input channels on data. acquisition systems or to disable outputs during power-up.
What is a switch IC?
Analog switch integrated chips (ICs), when turned on, will conduct both analog and digital signals from the input pin to the output pin. When the digital switch is turned off, it returns to a default logic state.
Can you buy analog switches?
Analog Switches are available at Mouser Electronics from industry leading manufacturers. Mouser is an authorized distributor for analog switch IC manufacturers including Analog Devices, Fairchild, Intersil, Maxim, NXP, ON Semi, Texas Instruments, Vishay, & many more.
What is CD4016?
The CD4016 is a CMOS IC with four analog switches, which can be controlled individually using a control pin. The signal can flow in either direction between the two pins of each switch. Each switch has an enable pin (A) and two input/output pins (X and Y).
How does a switching IC work?
What is the function of a switching voltage regulator IC? A switching voltage regulator accepts a dc input voltage and converts it to a switched voltage that can extend into the MHz region. Then, it converts the switched voltage to a dc output using a rectifier and low pass filter.
How does a 4066 work?
The 4066 really functions as an analog switch. The 4066 is an IC composed of switches which are designed to switch analog signals via digital control. The 4066 is a quad bilateral switch circuit, meaning that is composed of 4 switches. Each switch has a single input and a single output terminal.
What is a power mux?
A Power Multiplexer (Power MUX) is a set of electronic switches used to select and transition between two or more input power paths to a single output.
What is the difference between 4016 and 4066?
The 4066 is pin-compatible with the 4016, but has a significantly lower on impedance and more constant on resistance over the full range of input voltage. Therefore, the 4066 is preferable to the 4016 in most cases.
What is the function of pin No 5 in CD 4016 IC?
These switches can conduct in both the directions making it bilateral, it is commonly used for multiplexing analog or digital signals….Pin Configuration.
| Pin Number | Pin Name | Description |
|---|---|---|
| 5, 6, 12, 13 | Control A,B,C,D | Control pins for the four bilateral switches |
| 7 | Ground | Ground pin of the IC |
What is the internal construction of analog switches?

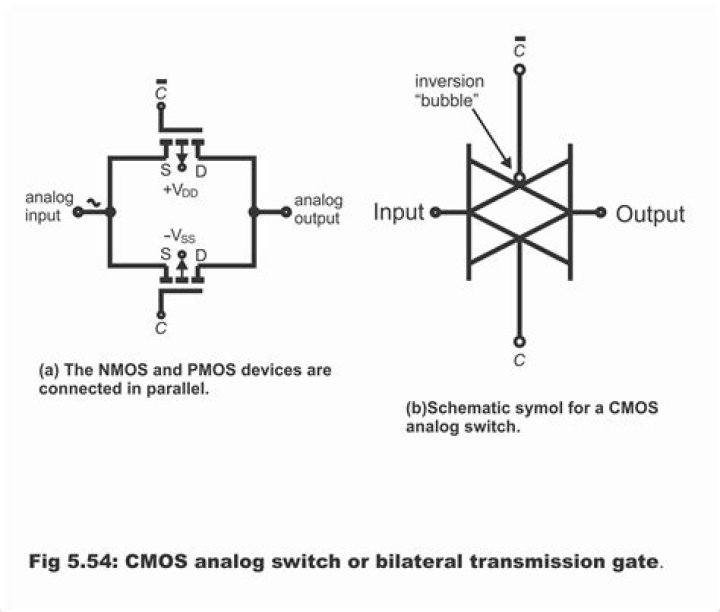

Figure 1. The internal construction of a typical analog switch features parallel n- and p-channel MOSFETs. Conventional analog switches like the early CD4066 are now offered by many semiconductor manufacturers.
How to divide by two using CMOS IC frequency dividers?
The easiest of the CMOS IC frequency dividers is the 4013, and this consists of two D type flip flops. To acquire this sort of circuit to divide by two it is simply essential to link the Q output to the data input, and earth the set anxi reset terminals.
How are the two MOSFETs switched on and off?
The two MOSFETs are switched on and off by internal inverting and noninverting amplifiers. These amplifiers level shift the digital input signal as required, according to whether the signal is CMOS- or TTL-logic compatible and whether the analog supply voltage is a single or dual supply.
How does a low-capacitance analog switch work?
Some low-capacitance analog switches use only n-channel MOSFETs in the signal path (e.g., the MAX4887) and eliminate the larger p-channel MOSFETs that significantly reduce the bandwidth of the analog switch. Other analog switches operating from a single positive supply rail use charge pumps to allow negative signal voltages.
