What is cold differential test pressure?

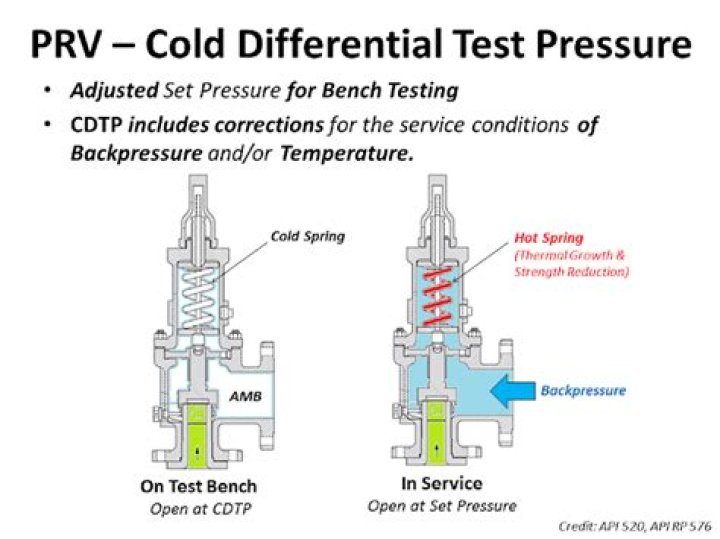

PRV – Cold Differential Test Pressure; The Cold Differential Test Pressure (CDTP) of the Pressure Relief Valve (PRV) is a set pressure that is adjusted to be used for the PRV (Bench Testing). Because in actual use conditions, the PRV may be affected by the Backpressure.
How do you calculate cold differential pressure?
CDTP is calculated by multiplying the calculated differential pressure by temperature correction factor that should be obtained from PSV manufacturer.
What is Cdsp of PSV?
Cold set pressure is listed as CDTP (Cold Differential Test Pressure). CDTP also includes a differential value to compensate for the effect of back pressure on a conventional type design (no bellows), with the back pressure compensation first considered.
What is relieving temperature of PSV?
The safety valve set pressure of 4.5barg which is designed for external fire for vessel content being water. The relieving pressure is 4.95barg [10% overpressure] and at this pressure, the relieving temperature is 158.62deg C. As you can see, the relieving temperature is higher than the design temperature of vessel.
What is PSV set pressure?
Pressure safety valves (PSVs) are one of the most commonly used devices in Process industry to protect a system from overpressure caused by any upset condition. They are one of the most reliable devices to reduce the risk arising out of over-pressurization. Typically, they can reduce the risk by 100 times.
How do I choose a pressure safety valve?
Here are six factors that must be considered when selecting and sizing safety or pressure relief valves.
- Connection size and type. The valve size must correspond to the size of the inlet and discharge piping.
- Set pressure (PSIG)
- Temperature.
- Back pressure.
- Service.
- Required capacity.
What is CDTP pressure?
Cold differential test pressure is when the relief valve opens on the test stand. On a test stand the relief valve is open to atmosphere, so the total backpressure is the sum of the superimposed backpressure (0 barg) plus the built-up back pressure. ‘rohollah’, on 11 Jul 2012 – 09:34 AM, said:
What does cdtp mean on a pressure relief valve?
The Cold Differential Test Pressure (CDTP) of the Pressure Relief Valve (PRV) is a set pressure that is adjusted to be used for the PRV (Bench Testing). Because in actual use conditions, the PRV may be affected by the Backpressure.
What is the shop test pressure of cdtp?
Therefore, when testing at room temperature and without backpressure, it is necessary to adjust the set pressure to compensate for these factors. In other words, the shop test pressure = CDTP. An example of a Cold Differential Test Pressure (CDTP) with a backpressure (superimposed) effect.
