What is conical surface airport?

A basic definition of an Airport Conical Surface is an imaginary surface which extends upward and outward from the outer limits of the Horizontal Surface for an additional, horizontal distance of 4,000 feet at a slope of 20:1 measured in a vertical plane. …

What is imaginary surface in airport?

Imaginary Surfaces are three dimensional planes or curved surfaces placed at various angles or arcs in relation to an airport’s runways based on a runway’s classification and most precise available or planned aircraft approach path. Obstructions that penetrate any of these surfaces are hazards to air navigation.

What are the types of imaginary surfaces?

FAR Part 77.25 defines five imaginary surfaces: primary, approach, transitional, horizontal and conical. These vary based on the type of operating procedures established for the airport. The purpose of these imaginary surfaces is to protect the airspace surrounding an airport from any hazards to air navigation.

What is a transitional surface?

Transitional Surface: A surface extending outward and upward, at right angles to the runway centerline and runway centerline extended, from the sides of the Primary Surface and the Approach Surfaces. The slope is 7-1 (14.3 percent) and the surface extends until it intersects the Horizontal or Conical Surface.

What is far 77?

Federal Regulation Title 14 Part 77 establishes standards and notification requirements for objects affecting navigable airspace. This notification serves as the basis for: Evaluating the effect of the construction or alteration on operating procedures.

What is balked landing surface?

1.21 Description — Balked landing surface: An inclined plane located at a specified distance after the threshold, extending between the inner transitional surface.

What is imaginary surface discuss importance of imaginary surface?

Imaginary surfaces exist primarily to prevent existing or proposed manmade objects, objects of natural growth or terrain from extending upward into navigable airspace.

What is a threshold siting surface?

4.5.13 Threshold Siting Surface Typically, the threshold is located at the end of the physical pavement of the runway, thereby allowing an approaching aircraft to land with the maximum amount of pavement provided. When required, a threshold can be “displaced” at a specified distance from the approach end of the runway.

What is horizontal surface?

Definitions of horizontal surface. a flat surface at right angles to a plumb line. synonyms: level.

What is Traverseway?

noun. A roadway, railway, or other transportation route designed to allow movement through or across an area or location; a route or path, passing right through, across, or past a place.

Do I need an FAA permit for my crane?

The Federal Aviation Administration (FAA) requires a permit on construction cranes any time that they will exceed a 100:1 sloped surface from the nearest point of the nearest runway out to 20,000 feet or 200 feet AGL (above ground level) beyond.

What is the conical surface of a runway?

The conical surface slopes upwards away from the runway at a uniform angle from start to finish. The outer horizontal surface is an imaginary circular flat plane that is established around large aerodromes. The figure below shows a plan view of an outer horizontal surface – not drawn to scale.

What is the horizontal surface of an aerodrome?

The Inner Horizontal Surface The inner horizontal surface is an imaginary flat plane that is established around every licensed aerodrome. It can be circular or ‘racetrack’ shaped depending on the technical details of the runway. The figure below shows a plan view of an inner horizontal surface – not drawn to scale.

What is the difference between conical and Transitional Surface?

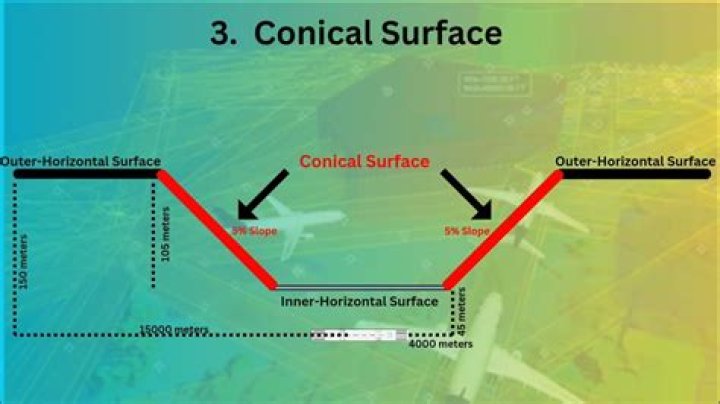

Conical Surface: A surface, which extends upward and outward from the outer limits of the Horizontal Surface for a horizontal distance of 4,000 feet. The slope of the conical surface is 20-1 (5 percent) measured in a vertical plane. Transitional Surface:

What are the Transitional Surfaces for a single runway aerodrome?

The image below shows the surfaces for a typical single runway aerodrome. The Transitional Surfaces are shown West and East of the runway in green. These Aerodrome Safeguarding principles are defined by the International Civil Aviation Organisation (ICAO) in Annex 14 to the Convention on International Civil Aviation.
