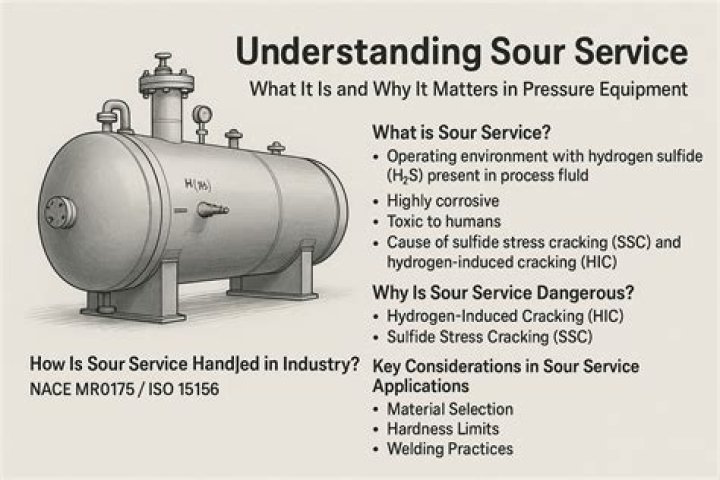

What is considered sour service?
Sour service occurs when a substance being transported or stored in a vessel has high amounts of hydrogen sulfide or sulfuric acid. From there, the hydrogen sulfide can be oxidized to form sulfuric acid. The sulfuric acid can then lead to corrosion.
What is NACE material specification?
NACE MR 0175/ISO 15156 is a Materials Standard issued by the National Association of Corrosion Engineers. It is originally a US standard intended to assess the suitability of materials for oilfield equipment where sulphide (sulphide) stress corrosion cracking may be a risk in hydrogen sulphide (sour) environments.
What is NACE MR0175 requirements?
NACE MR0175 is titled: Petroleum and Natural Gas Industries — Materials for use in H2S-containing environments in oil and gas production. It was issued as a recommendation of threshold limits of H2S above which precautions against environmental cracking are considered necessary.
Is 316 stainless steel NACE compliant?
NACE Requirements The standard allows the use of tube fittings produced from cold-drawn 316 stainless steel and 6-Moly, respectively, in instrumentation and control systems.
What is the difference between NACE and non NACE material?
To reply to your question, there is no difference between the NACE and non-NACE materials because they don’t exist with this classification.
What is difference between NACE MR0175 and MR0103?
NACE MR0175 applies to upstream exploration and production operations, NACE MR0103 is specific for refinery environments. Both standards provide specific requirements for different metallic materials like carbon and low alloy steels, stainless steels, nickel alloys and other metallic materials.
Is NACE sour service?
Sour Service Corrosion Testing Element is one of a few ISO certified sour service labs in the world, providing sour service corrosion services for a variety of test types including NACE MR0175/ISO 15156.
What is CS NACE material?
NACE was established since 1943, full name is The National Association of Corrosion Engineers. In NACE standards, MR0175 is the standard of material requirements for H2S containing oil and gas production and equipment. As a result, Nace pipe is used in H2S containing gas and oil transportation.
What is the difference between NACE MR0175 and MR0103?
What is NACE flange?
Nace Piping Products is acknowledged as a manufacturer, exporter & suppliers of Slip On Flange & Stainless steel Flanges (Gr. The flange is slipped over the pipe and then welded both inside and outside to provide sufficient Strength and prevent leakage.
What is NACE approved?
A NACE MR0175 compliant material (sometimes inaccurately referred to as NACE material or NACE piping) is a material that meets all the requirements of NACE MR0175 and can be used in H2S environments within the limits set by the standard.
What is the latest edition of Nace MR0175?
The 4th edition (November 2020) of BS EN ISO 15156 (also known as ANSI/NACE MR0175) – “Petroleum and natural gas industries – Materials for use in H2S-containing environments in oil and gas production” is the latest standard that updates the 3rd edition released in 2015.
Is there a list of approved materials for sour service?
NACE MR 0175 does not include a list of approved materials but gives ways to establish suitability of the material for sour service. Table 1: Definition of “Sour Service” given in CSA Z662.
How to choose NACE MR0175 material?
To choose the NACE material in these working conditions: such as water treatment equipment, sucker rods and liquid pump etc. All these products have detailed specifications, but not belong NACE MR0175 standards scope. The responsibility of users is to make sure whether the standards is suitable for the work conditions.
What is the NACE MR0175 limit for sulfur content?
For carbon and alloy steel pipes, NACE MR0175 has limits for content Sulfur (S ≤ 0.002%), Phosphorus (P ≤ 0.020%) and Carbon (C ≤ 0.10%).
What is the difference between ISO standards and NACE specifications?
NACE (formerly the National Association of Corrosion Engineers) has published two specifications that provide guidance on reducing the risk of in-service cracking, these also being ISO standards. The major difference between these two primary specifications is the environmental and service condition.
