What is corner detection in image processing?
Corner detection works on the principle that if you place a small window over an image, if that window is placed on a corner then if it is moved in any direction there will be a large change in intensity.
What is interest point detection?
Interest Point in an image is a point that is exceptional from its neighborhood. To detect and describe this point typically it’s used a two-step process: A. Feature Detectors: where a feature detector (extractor) is an algorithm taking an image as input and outputting a set of regions (‘local features’).
What is fast corner detection?
Features from accelerated segment test (FAST) is a corner detection method, which could be used to extract feature points and later used to track and map objects in many computer vision tasks. The FAST corner detector was originally developed by Edward Rosten and Tom Drummond, and was published in 2006.
How do you detect Harris Corners?
Corner Detection
- When |R| is small, which happens when λ1 and λ2 are small, the region is flat.
- When R<0, which happens when λ1>>λ2 or vice versa, the region is an edge.
- When R is large, which happens when λ1 and λ2 are large and λ1∼λ2, the region is a corner.

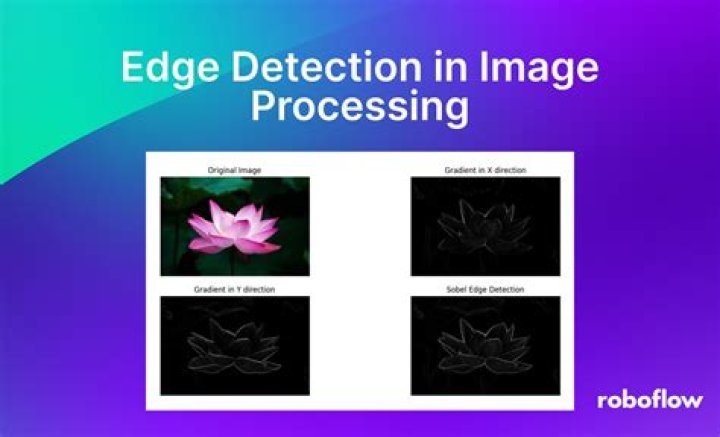

How is edge detection done in computer vision?
Edge detection is a technique of image processing used to identify points in a digital image with discontinuities, simply to say, sharp changes in the image brightness. These points where the image brightness varies sharply are called the edges (or boundaries) of the image.
What is interest point detection in image processing?
Some of the lowest-level features to be detected in an image are the specific positions of some distinguishable points such as corners, edge points, or straight line points. In fact, interest points are a set of pixels in an image which are characterized by a mathematically well-founded definition [2].
What is the importance of interest point detection in an image?
The goal is to detect objects in images using a single model and identify correspondences between the image and the model.
What is brisk algorithm?
The BRISK algorithm is a feature point detection and description algorithm with scale invariance and rotation invariance. It constructs the feature descriptor of the local image through the gray scale relationship of random point pairs in the neighborhood of the local image, and obtains the binary feature descriptor.
How is fast detector different from Harris corner detector?
FAST detector has better than Shi-Tomasi & Harris in detecting precise and actual corners-points . Shi-Tomasi corner detection is more stronger to noise than FAST & Harris. in each type of noise (Gaussian, salt&pepper and speckle ) one of the aforementioned algorithms was the best than other .
What is the main idea for Harris corner detector?
The Harris corner detector is a corner detection operator that is commonly used in computer vision algorithms to extract corners and infer features of an image. It was first introduced by Chris Harris and Mike Stephens in 1988 upon the improvement of Moravec’s corner detector.
What is edge detection technique?
Edge detection is an image processing technique for finding the boundaries of objects within images. It works by detecting discontinuities in brightness. Edge detection is used for image segmentation and data extraction in areas such as image processing, computer vision, and machine vision.
How do corner detection algorithms work?
This is one of the earliest corner detection algorithms and defines a corner to be a point with low self-similarity. The algorithm tests each pixel in the image to see if a corner is present, by considering how similar a patch centered on the pixel is to nearby, largely overlapping patches.
What is an interest point in image processing?
An interest point is a point in an image which has a well-defined position and can be robustly detected. This means that an interest point can be a corner but it can also be, for example, an isolated point of local intensity maximum or minimum, line endings, or a point on a curve where the curvature is locally maximal.
How does the Förstner corner detector work?
The Förstner corner detector. To achieve an approximate solution, the Förstner algorithm solves for the point closest to all the tangent lines of the corner in a given window and is a least-square solution. The algorithm relies on the fact that for an ideal corner, tangent lines cross at a single point.
What is the Wang and Brady corner detection algorithm?
The Wang and Brady corner detection algorithm. The Wang and Brady detector considers the image to be a surface, and looks for places where there is large curvature along an image edge. In other words, the algorithm looks for places where the edge changes direction rapidly.
