What is double acting valve?

Double action is a control valve that is driven by the output air of control valve positioner on both sides (sides open and close). We only need to pressurize on one side only to operate the valve. The double acting actuator is the actuator that only use piston as its element to operate the valve.

How does a double acting valve work?

Double-acting actuators have air or liquid supplied to both sides of the piston with one side at higher pressure, which achieves the movement required to actuate the valve. This configuration uses pneumatic or hydraulic pressure of the air or liquid to open or close the valve, and a spring affects the opposite motion.

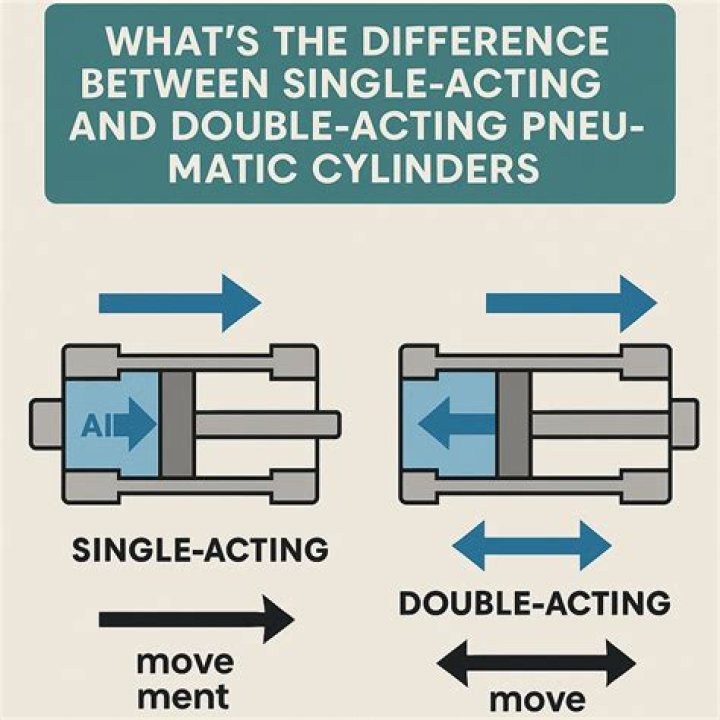

What is difference between single and double acting actuator?

Single acting cylinders has one port where pressurized air enters, while double acting cylinders use two ports to operate. This simple design difference distinguishes both cylinders in terms of movement and speed.

Can you use a double acting hydraulic cylinder as a single acting?

so yes you can use a double acting cylinder as a single acting.

What is the function of a double acting cylinder?

A double-acting cylinder is used where an external force is not available to retract the piston or it can be used where high force is required in both directions of travel.

What is the difference between a single acting and a double acting hydraulic cylinder?

A single-acting hydraulic cylinder includes just one port. This is where the hydraulic fluid enters and forces the plunger out in one direction. A double-acting cylinder includes two ports. One for the hydraulic fluid to enter and extend the plunger, and the other for retracting the cylinder.

Can a double acting cylinder be used as a single acting?

Which is better single acting cylinders or double acting cylinders?

If the heavy lifting, so to speak, is only in one direction, a single acting hydraulic or pneumatic cylinder may be your best bet. If you are moving a part in two directions and need to have full control, it’s best to have a double acting hydraulic or pneumatic cylinder.

What is FB in valve?

The “Full port” (FB) type features a bore size (the hole of the ball) matching the bore size of the connected piping. Full port ball valves minimize the pressure drop that is generated by reduced port valves but they are of course more bulky, heavy and expensive.

What is a double acting hydraulic valve?

Use the Hydraulic Double-Acting Valve Actuator block as a pilot actuator for directional, pressure, or flow control valves in applications where all the forces, except spring force, and flow consumption can be neglected. The actuator consists of two single-acting actuators acting against each other.

Which type of solenoid valve used for double acting actuator?

The two-position five-way solenoid valve is usually used with a double-acting pneumatic actuator. The valve body has five air connection ports, one of which is connected with air source, two with double-acting cylinders of actuators and two of which are exhaust ports.

What is the advantage of double acting cylinder?

Energy-saving

What is a double acting solenoid valve?

The double acting solenoid valve is equipped with double coils to push the spool in the each of 3 positions. We use a threaded solenoid connection which highly popular among our clients and accepted by the market for its high operation performance.
