What is double conversion mode in UPS?
A double-conversion on-line UPS converts power twice. Second, DC is converted back into AC that is tightly regulated by the UPS. This AC output can even have a different requency from the AC input. All of the power provided to the load equipment goes through this double-conversion process when AC input is present.
How is UPS efficiency calculated?
UPS efficiency is based on how much of the original incoming power is needed to operate the UPS. For example, an uninterruptible power supply with a 95% efficiency rating will have 95% of the original input powering the load and connected systems, with the remaining 5% energy “wasted” running the UPS.
Which UPS uses double conversion method?
on-line UPS
An on-line UPS uses a “double conversion” method of accepting AC input, rectifying to DC for passing through the rechargeable battery (or battery strings), then inverting back to 120 V/230 V AC for powering the protected equipment.
What is UPS inverter efficiency?
Efficiency in an Inverter/UPS system Power input is power taken from mains and Power output is the energy saved in the battery. Efficiency here will be effectiveness with which inverter saves 1 unit (or kWH) of power. If all of it is stored in the battery it will be 100%.

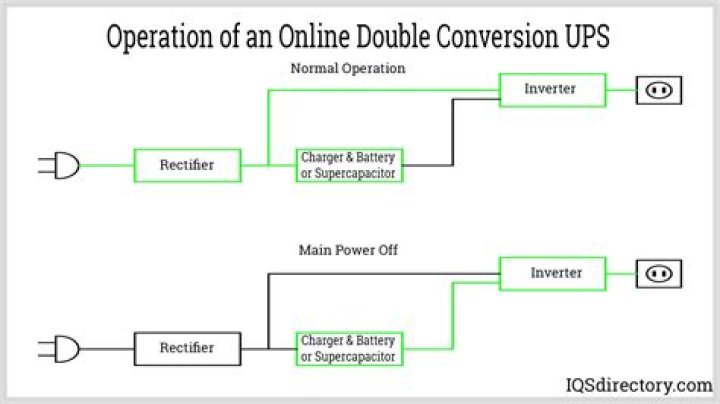

How does a double conversion UPS work?
Double conversion UPS modules provide uninterrupted power to critical loads. They do this by filtering and converting incoming utility power to DC power, then converting the DC power to a perfect AC output from the inverter. The inverter is also supported by a DC source that may include batteries or flywheels.
What is the efficiency of a UPS?
New energy-efficient UPSs generally range from 92% to 95% efficient. However, a UPS does not always operate as efficiently as its rating suggests. Instead, its efficiency follows a curve based on its “load factor” —how much of its power capacity is being used.
How does a double conversion work superheterodyne receiver?
The basic concept behind the double superhet radio receiver is the use of a high intermediate frequency to achieve the high levels of image rejection that are required, and a further low intermediate frequency to provide the levels of performance required for the adjacent channel selectivity.
What are the types of UPS?
UPS systems are divided into three types based on how power flows through the unit: standby, line-interactive and online double-conversion.
Which UPS are highly efficiency?
UPS A has a 96 percent efficiency rating, while UPS B has a 94 percent efficiency rating. When operating at a capacity below 50 percent, however, UPS B is actually the more efficient system – despite its lower efficiency rating.
Why is UPS efficiency important?
There is a significant importance of efficiency and safety for UPS. Drivers not only need to ensure safety while loading, unloading and transporting but need to work faster to deliver more packets per round.
What is the efficiency of a static double conversion UPS?
The average static double-conversion UPS system operates between 90% efficient at 30% load to about 94% efficient at 100% load. The efficiency percentage can go up or down a little depending on the technology used, and whether the UPS contains an input isolation transformer.
What is a double conversion UPS module?
Double conversion UPS modules provide uninterrupted power to critical loads. They do this by filtering and converting incoming utility power to DC power, then converting the DC power to a perfect AC output from the inverter. The inverter is also supported by a DC source that may include batteries or flywheels.
How is ups efficiency measured?
Usually, UPS efficiency is judged at full load calculations –but your system rarely runs at full load. Compare double conversion efficiencies in the 30-70% load range to get a true picture of the operating costs. This is where Liebert® EXMTM draws out the critical difference by consistently exceeding unmatched 96% efficiency levels.
How much more efficient are 2n redundant UPS?
In a 2N redundant-type (system + system) configuration, where the system is typically operating each UPS below 40%, that equates to about a 4% to 8% increase in efficiency. The increase in efficiency also means less heat, which reduces cooling requirements.
