What is duffing equation used for?

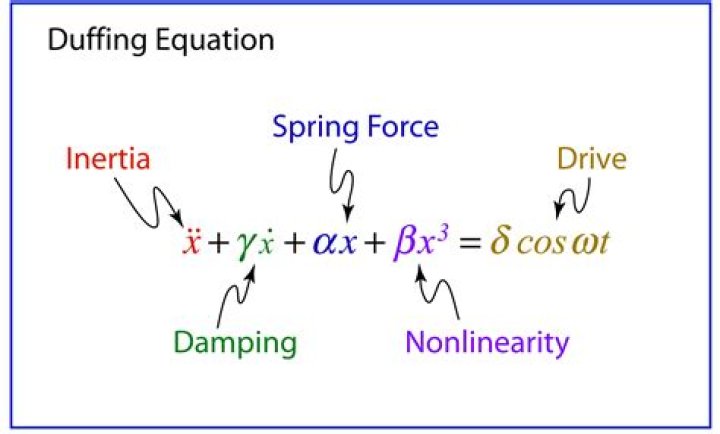

Nowadays, the term “Duffing equation” is used for any equation that describes an oscillator that has a cubic stiffness term, regardless of the type of damping or excitation. ¨x+γ˙x+ω20x+βx3=0. This, however, was not the case in Duffing’s original work. The above equation can display chaotic behavior.

How is Poincaré section calculated?

= − γ y − F ( x ) + f 0 cos ω t . A Poincaré section can be obtained in this system by defining a third variable z = ωt, where 0 ≤ z < 2π, so that the system is converted to a autonomous system of equations using.

What is the importance of Poincare map?

Because it preserves many properties of periodic and quasiperiodic orbits of the original system and has a lower-dimensional state space, it is often used for analyzing the original system in a simpler way.

What is a softening spring?

Spring softening is a reduction in the effective spring constant; it manifests as a downward shift in resonance frequency. Spring hardening is the opposite: an increase in the effective spring constant.

What does a Poincare plot show?

The Poincaré plot is a geometrical representation that permits the visual identification of the presence of non-linear HRV components. In the Poincaré plots, the SD1 width reflects the parasympathetic activity; and the SD2 length reflects the sympathetic modulation.

What is Poincare surface of section?

mathematics. A Poincaré section, or map. The trajectory, or orbit, of an object x is sampled periodically, as indicated by the blue disk. The rate of change for the object is determined for each intersection of its orbit with the disk, as shown by P(x) and P2(x).

How do you make a Poincaré section?

To create the Poincaré section, we need to be able to extract the theta and omega values for a set of equally spaced times. Next we create a list of theta, omega values evaluated at a series of times corresponding to the period T of the driving term.

What is hardening spring?

What is linear and nonlinear oscillator?

If the dissipation of energy in a system (linear or nonlinear) is not compensated, then all oscillations are damped and the system reaches an equilibrium. Linear systems are the simplest, idealized models of real processes. Even significantly simplified models of real systems are generally nonlinear.

What is a Poincaré map used for?

Because it preserves many properties of periodic and quasiperiodic orbits of the original system and has a lower-dimensional state space, it is often used for analyzing the original system in a simpler way. In practice this is not always possible as there is no general method to construct a Poincaré map.

Are Poincaré maps discrete dynamical systems?

Poincaré maps and stability analysis Poincaré maps can be interpreted as a discrete dynamical system. The stability of a periodic orbit of the original system is closely related to the stability of the fixed point of the corresponding Poincaré map. Let (R, M, φ) be a differentiable dynamical system with periodic orbit γ through p.

What is Duffing’s equation?

Duffing’s equation is the second-order nonlinear equation where k, Γ, and ω are positive constants. Depending upon the values of the parameters, solutions to Duffing’s equation can exhibit very interesting behavior. 1.

How do you plot Duffing’s equation on a logarithmic scale?

Using a logarithmic scale, plot the power spectrum P(ω2000) of Duffing’s equation if k = 0.3, Γ = 0.5, and x0 = y0 = 0 for 300 equally spaced values of ω between 0 and 3. For a second order equation nonlinear equation like Duffing’s equation, it is often desirable to generate a parametric plot of x(t) versus x ′ (t). To do so, we set y = x ′.
