What is EMI enclosure?

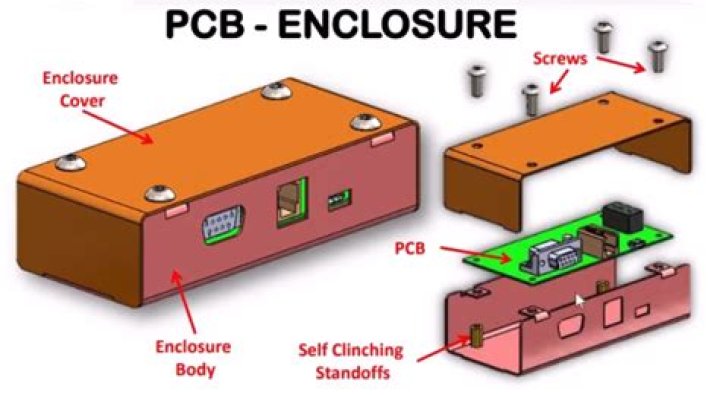

EMI shielding is the practice of using various countermeasures to protect electrical and electronic devices from EMI. Many electrical device designers will specify an electrical enclosure box made from a conductive metal like aluminum or steel due to these metals’ natural EMI protection.

What is shielded enclosure?

Shielded enclosures generally surround a product’s circuitry on all sides. Care is taken to ensure that all apertures are small and every seam is sealed. On the other hand, it is not uncommon to find shields that don’t surround the entire product. Often a shield partially covers only a few circuits.

How can I protect my electronics from EMI?

Particle-filled silicone is another option used to shield against EMI for their resistance to sunlight, water and different temperatures. Composite materials such as carbon fiber reinforced plastics (or “CFRPs”) are also growing in popularity do to their excellent strength-to-weight ratio.

Why EMI shielding is required?

The main purpose of effective EMC Shielding is to prevent electromagnetic interference (EMI) or radio frequency interference (RFI) from impacting sensitive electronics. This is achieved by using a metallic screen to absorb the electromagnetic interference that is being transmitted through the air.

How electrostatic field can be shielded with the metal enclosure?

For example, if the shield is a metal sphere, the field outside will be Coulomb-like and radial. Not so if it’s a box.) However, shielding the outside can be accomplished by grounding the conductor. The conductor then acts like an electrostatic shield as a result of the superposition of the two fields.

Why are cables shielded?

Shielded cable is necessary to reduce and prevent all the effects of EMI and the other hazards found in busy, industrial workplaces. The shield reflects energy and grounds electrical noise by surrounding the power-carrying conductors or inner signals.

How do I stop EMI interference?

Use twisted pair shielded cable to carry instrumentation signals. Twisting the wires equalizes the effect of EMI on both wires, greatly reducing error due to EMI. Surrounding the instrument wires with a shield protects them from EMI, and provides a path for EMI-generated current to flow into ground.
