What is energy density in a parallel plate of capacitor?

Energy density is defined as the total energy per unit volume of the capacitor. Since, Now, for a parallel plate capacitor, A × d = Volume of space between plates to which electric field E = V / d is confined. Therefore, Energy stored per unit volume.

How do you calculate the energy density of a parallel plate capacitor?

As described in the lecture, the energy stored on a parallel plate capacitor is proportional to the square of the electric field. If we divide the energy by the volume of space found between the two plates, then we obtain the energy density of the parallel plate capacitor.

What is the potential difference between two parallel plate capacitor?

The potential difference between the two plates of a parallel plate capacitor is constant.

What is the formula of energy density in capacitor?

Therefore, the formula of energy density is the sum of the energy density of the electric and magnetic field. Example 1: Find the energy density of a capacitor if its electric field, E = 5 V/m.

What do you understand by energy density of a parallel plate capacitor derive a relation for it?

If we multiply the energy density by the volume between the plates, we obtain the amount of energy stored between the plates of a parallel-plate capacitor UC=uE(Ad)=12ϵ0E2Ad=12ϵ0V2d2Ad=12V2ϵ0Ad=12V2C. In this derivation, we used the fact that the electrical field between the plates is uniform so that E=V/d and C=ϵ0A/d.

What is electric energy density capacitor?

The energy density of a capacitor is the energy stored per unit volume. It is denoted by u. Joining of similar plates of the charged capacitors always accompanies with loss of energy.

How is the potential energy of a capacitor related to the charge placed on the capacitor?

Energy stored in a capacitor is electrical potential energy, and it is thus related to the charge Q and voltage V on the capacitor. Thus the energy stored in a capacitor, Ecap, is Ecap=QV2 E cap = Q V 2 , where Q is the charge on a capacitor with a voltage V applied. (Note that the energy is not QV, but QV2 Q V 2 .)

What happens to the potential difference between the plates of a capacitor as the thickness of the dielectric slab increases?

Explanation: When a dielectric is introduced between the plates of a capacitor, its potential difference decreases. Hence as the thickness of the dielectric slab increases, a larger value is subtracted from the original potential difference.

What is the energy density of the electric field between the plates of the capacitor?

We interpret uE = ½ε0E2 as the energy density, i.e. the energy per unit volume, in the electric field. The energy stored between the plates of the capacitor equals the energy per unit volume stored in the electric field times the volume between the plates.

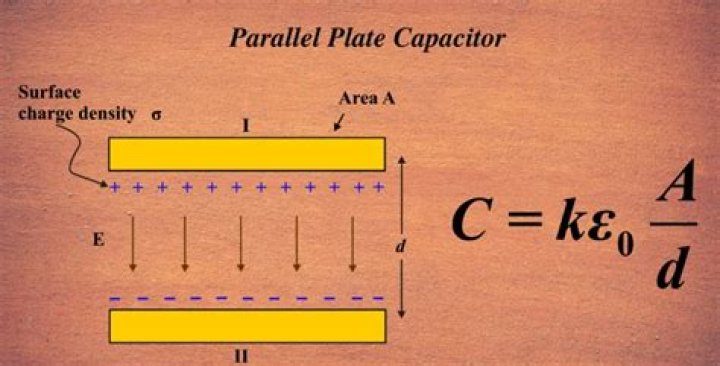

What is the capacity of parallel plate capacitor?

The capacity of a parallel plate capacitor with no dielectric substance but with a separation of 0.4 cm is 2μF. The separation is reduced to half and it is filled with a dielectric substance of value 2.8.

What is energy density in capacitor?

What is the energy density of a parallel plate capacitor?

Energy density is the total energy per unit volume of the capacitor as the electrostatic energy stored in a parallel plate capacitor is U = ½ CV². Where, for a parallel plate capacitor, C = ε 0 A d and V = Ed; so, U = 1 2 (ε 0 A d) (E d) 2 = 1 2 ε 0 E 2 (A d), Where Ad = Volume of the capacitor (V).

How do you find the energy density of a capacitor?

Knowing that the energy stored in a capacitor is UC = Q2 / (2C), we can now find the energy density uE stored in a vacuum between the plates of a charged parallel-plate capacitor. We just have to divide UC by the volume Ad of space between its plates and take into account that for a parallel-plate capacitor, we have E = σ / ϵ0 and C = ϵ0A / d.

What is the relationship between capacitance and potential difference?

From Equation (1) (1), the capacitance is inversely proportional to the work done and therefore it is easier to transfer charge to a capacitor with greater capacitance. The amount of work done to charge a capacitor against the resulting potential difference is stored as the electric potential energy in the capacitor.

How much energy is stored between the plates of a capacitor?

If we multiply the energy density by the volume between the plates, we obtain the amount of energy stored between the plates of a parallel-plate capacitor UC = uE(Ad) = 1 2ϵ0E2Ad = 1 2ϵ0V2 d2Ad = 1 2V2ϵ0A d = 1 2V2C. In this derivation, we used the fact that the electrical field between the plates is uniform so that E = V / d and C = ϵ0A / d.
