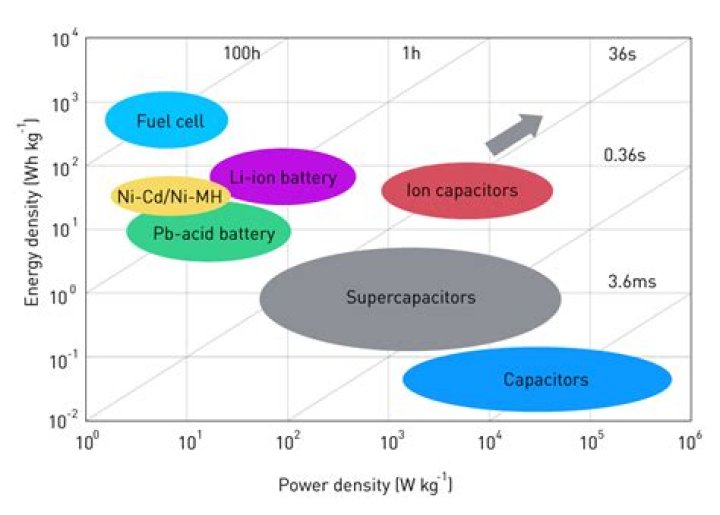

What is energy density in battery?

Energy density is the measure of how much energy a battery contains in proportion to its weight. This measurement is typically presented in Watt-hours per kilogram (Wh/kg). A watt-hour is a measure of electrical energy that is equivalent to the consumption of one watt for one hour.

How is battery heat dissipation calculated?

The battery heat is generated in the internal resistance of each cell and all the connections (i.e. terminal welding spots, metal foils, wires, connectors, etc.). You’ll need an estimation of these, in order to calculate the total battery power to be dissipated (P=R*I^2).

Do batteries dissipate energy?

A battery generates power when it powers a light bulb. It dissipates power when it is being charged. The charging process converts applied current into stored chemical energy.

What is energy density formula?

U = E/V. Dimension. In physics, energy density is the amount of energy stored in a given system or region of space per unit volume.

What is energy density write its formula?

Energy Density is defined as the total amount of energy in a system per unit volume. Therefore, the formula of energy density is the sum of the energy density of the electric and magnetic field. Example 1: Find the energy density of a capacitor if its electric field, E = 5 V/m.

What is the formula of heat dissipated?

W=VIt. Because this circuit consists of only one resistor, the entire work done goes into energy lost through power dissipation by this resistor, by conservation of energy. Differentiating with respect to time, one obtains the rate of power dissipation in the resistor: P = d W d t = I V = I 2 R = V 2 R .

How is UPS heat dissipation calculated?

Add up the load power of all of your IT equipment. This number is equal to the heat output. Use the following formula for a UPS system with a battery: (0.04 x Power system rating) + (0.05 x Total IT load power).

How do you increase the energy density of a battery?

Electrode engineering Optimizing cell engineering is a straightforward approach to increase the cell energy density by increasing the volume ratio of active materials in a battery pack.

What is C rate in Li ion battery?

The battery C Rating is the measurement of current in which a battery is charged and discharged at. The capacity of a battery is generally rated and labelled at the 1C Rate (1C current), this means a fully charged battery with a capacity of 10Ah should be able to provide 10 Amps for one hour.

How energy is harnessed from batteries?

A battery is a device that stores chemical energy and converts it to electrical energy. The chemical reactions in a battery involve the flow of electrons from one material (electrode) to another, through an external circuit. The flow of electrons provides an electric current that can be used to do work.

Is dissipated power negative?

We know that if a current is entered through the positive polarity of an element and exit through the negative polarity, then the power is positive which means that the power is consumed through the element.

What is the amount of energy dissipated in the resistor?

In other words, if we had an initial voltage on the capacitor or if we opened the switch before t = ∞ the amount of energy change in the capacitor is equal to the amount of energy dissipated in the resistor. The energy dissipated in the resistor is therefore only about 0.11% of the energy stored in the battery.

How is energy created or destroyed in a circuit?

Energy is not created or destroyed. See the various ways in which energy is stored, transferred and dissipated. Energy dissipation in resistors as a charge q moves through a resistor, it loses a potential energy qV where V is the potential drop across the resistor.

What are the two forms of energy that are dissipated?

Heat energy, potentially as a result of air drag or friction. Heat energy is the most easily dissipated form of energy. Light energy is frequently energy seen in combustion and is a type of wave motion. Sound energy is another type of wave motion caused by the vibration of molecules in the air.

What is a dissipative process in Electrical Engineering?

A dissipative process is a process in which energy is transformed from some initial form to some final form; the capacity of the final form to do mechanical work is less than that of the initial form. By the Ohm’s law ( V = I × R ), to find the current through the resistor.
