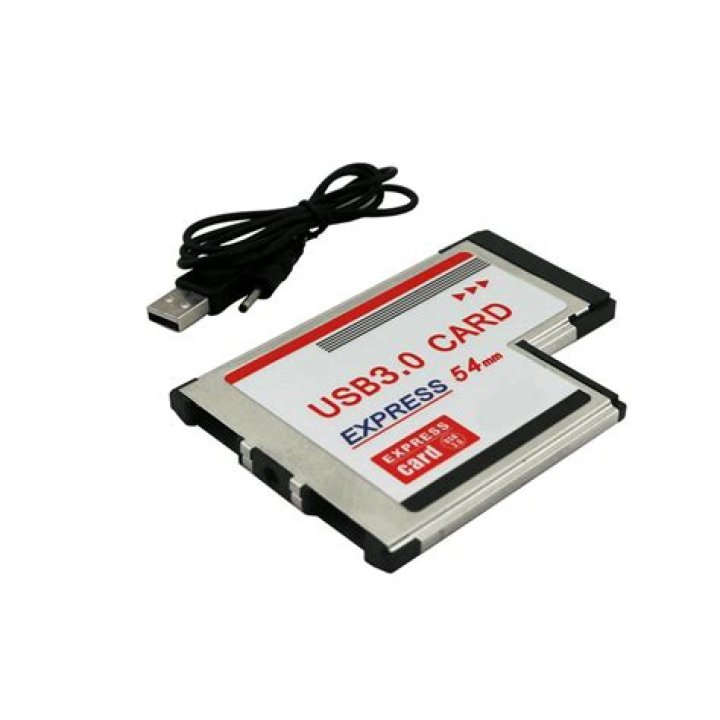

What is ExpressCard 54 slot used for?
ExpressCard, initially called NEWCARD, is an interface to connect peripheral devices to a computer, usually a laptop computer. The ExpressCard technical standard specifies the design of slots built into the computer and of expansion cards to insert in the slots….ExpressCard.
| Year created | 2003 |
|---|---|
| External interface | Yes |
What is an ExpressCard 34 slot?
With the MacBook Pro, Apple discarded the old PC Card slot in favor of ExpressCard/34, a more compact expansion slot that offers greater transfer speeds and an increasing array of uses. First, it’s narrower: ExpressCard/34 cards are 34mm wide, compared with the 54mm PC Cards.
What is ExpressCard Short answer?
An ExpressCard is a proprietary printed circuit board that is inserted into a slot to provide additional features to a computer system by way of a computer bus, which transfers information between the peripheral device and the computer’s internal hardware.
What are Express cards Iphone?
Express Card transactions are those made in Express Mode, a per-card setting which allows the device to interact with contactless terminals without first getting Touch ID, Face ID, or passcode authentication.
Is ExpressCard slot same as SD card slot?
No difference to Apple. ExpressCard slot repair cases are internally marked as SD Card slot ones.
What type of connector does ExpressCard use?
ExpressCard uses a 26 position connector which supports both the USB interface and the PCI Express buses. The 26-pin connector is used for both modules formats; ExpressCard/34 module, and ExpressCard/54 module. The ExpressCard uses a beam-on-blade style connector.
What are the ExpressCard types?
There are two standard formats of ExpressCard modules: the ExpressCard/34 module (34mm x 75mm) and the ExpressCard/54 module (54mm x 75mm). Both formats are 5mm thick, the same as the Type II PC Card. The standard module length is 75mm, which is 10.6mm shorter than a standard PC Card.
What is the difference between the ExpressCard/34 and expresscard-54?
The Expresscard/34 is 34 mm wide, while the Expresscard/54 is 54 mm wide. The modules are both 5 mm high and 75 mm long. The 34 mm module has the advantage in that it can fit into the slot designed for the 54 mm card, but not vice versa.
What is the size of the ExpressCard module?
There are two sizes of ExpressCard module. One is 34 mm wide (ExpressCard/34) and the other is 54 mm (ExpressCard/54). Both modules are 75 mm long and 5 mm high. Host systems can provide any combination of slots for either width of module.
What is the difference between CardBus and ExpressCard form factors?
Form factors. The ExpressCard standard specifies two form factors, ExpressCard/34 (34 millimetres (1.3 in) wide) and ExpressCard/54 (54 mm (2.1 in) wide, in an L-shape)—the connector is the same on both (34 mm wide). Standard cards are 75 mm (3.0 in) long (10.6 mm (0.42 in) shorter than CardBus) and 5 mm (0.20 in) thick,…
What is the difference between PC Card and ExpressCard?
The cards contain electronic circuits and sometimes connectors for external devices. The ExpressCard standard replaces the PC Card (also known as PCMCIA) standards.
