What is induction coupling?

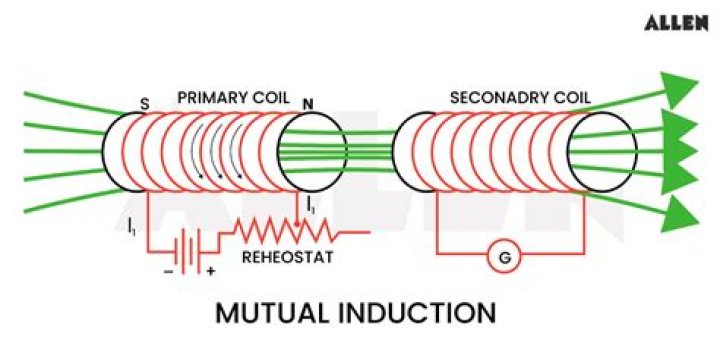

In electrical engineering, two conductors are said to be inductively coupled or magnetically coupled when they are configured in a way such that change in current through one wire induces a voltage across the ends of the other wire through electromagnetic induction.
What is magnetic coupling in transformer?
Magnetically coupled circuit means that two loops, with or without contacts between them, affect each other through the magnetic field generated by one of them. • Based on the concept of magnetic coupling, the transformer is designed for stepping up or down ac voltages or currents.
How can we avoid inductive coupling?
Methods to reduce the effect of Inductive Coupling Between Cable and Ground Loop
- Decrease the cable height (h) and length.
- Whenever possible place the cable near the metal surface.
- Use twisted cables.
- On high frequencies ground the shield at two points (be careful) and on low frequencies at a single point.
What is capacitive and inductive coupling?
Instead of injecting a current that splits, as in capacitive coupling, a series voltage is induced in the coupled conductor that pushes a current along the conductor. Although Figure 2 shows a “transformer,” inductive coupling can sometimes take the form of two parallel conductors at frequencies of few MHz and higher.
What is EM coupling?
EM coupling is defined as the interaction of RF signals with biological tissues in the spectral range between tens of MHz to the low GHz range.
What is magnetic coupling?
A magnetic coupling is a coupling that transfers torque from one shaft to another, but using a magnetic field rather than a physical mechanical connection. Magnetic shaft couplings preclude the use of shaft seals, which eventually wear out and fail from the sliding of two surfaces against each another.
What is magnetic coupling in circuit?
Magnetic field coupling (also called inductive coupling) occurs when energy is coupled from one circuit to another through a magnetic field. Since currents are the sources of magnetic fields, this is most likely to happen when the impedance of the source circuit is low.
How can we reduce coupling noise?
There are a few ways to reduce noise in a system – to make proper wiring, grounding of a system, shielding and the use of twisted-pair wire. The shield is usually achieved with foil or copper tape and prevents conductive, capacitive noises, ground loops, but not inductive noises.
What is frequency range of inductive coupling?
Resonant frequencies of 300 kHz to 1.6 MHz have been achieved for various series-parallel L-C combinations for different coil thicknesses. The effect of coil distance on power transfer efficiency has been studied thoroughly.
What is coupling capacitor and bypass capacitor?
Coupling capacitors (or dc blocking capacitors) are use to decouple ac and dc signals so as not to disturb the quiescent point of the circuit when ac signals are injected at the input. Bypass capacitors are used to force signal currents around elements by providing a low impedance path at the frequency.
What is an inductively coupled transponder?
An inductively coupled transponder consists of a solid state transceiver chip connected to a large coil that functions as an antenna. When brought within the oscillating magnetic field of a reader unit, the transceiver is powered up by energy inductively coupled into its antenna and transfers data back to the reader unit inductively.
What is inductive coupling in a transformer?
Inductive coupling. Coupling can also be increased by a magnetic core of a ferromagnetic material like iron or ferrite in the coils, which increases the magnetic flux. The two coils may be physically contained in a single unit, as in the primary and secondary windings of a transformer, or may be separated.
How does an alternating magnetic lamp work?
The alternating magnetic field through the top coil induces current in it which lights the lamp.
