What is MicroBlaze soft processing system?

The MicroBlaze is a soft microprocessor core designed for Xilinx field-programmable gate arrays (FPGA). As a soft-core processor, MicroBlaze is implemented entirely in the general-purpose memory and logic fabric of Xilinx FPGAs. MicroBlaze was introduced in 2002.

What is the use of MicroBlaze?

MicroBlaze is Xilinx’s 32-bit RISC soft processor core, optimized for embedded applications on Xilinx devices. The MicroBlaze processor is easy to use and delivers the flexibility to select the combination of peripherals, memory, and interfaces as needed.

What is MicroBlaze MCS?

MicroBlaze™ Micro Controller System (MCS) is a complete standalone processor system intended for controller applications. It is highly integrated and includes the MicroBlaze processor, local memory for program and data storage as well as a tightly coupled IO module implementing a standard set of peripherals.

What is the advantage of using the MicroBlaze soft-core?

For higher performance and long-term flexibility, the MicroBlaze soft processor core provides system developers with a uniquely powerful, extensible embedded design solution. The Xilinx® MicroBlaze™ IP core is a highly configurable 32-bit microprocessor optimized for the programmable logic in Xilinx FPGAs and SoCs.

What is Xilinx PetaLinux?

PetaLinux automates creating embedded Linux systems based on your customized hardware in Xilinx FPGAs and SoCs. PetaLinux includes U-Boot, Linux kernel, Device Tree, and Root Filesystem components.

What is FPGA explain?

Field Programmable Gate Arrays (FPGAs) are semiconductor devices that are based around a matrix of configurable logic blocks (CLBs) connected via programmable interconnects. FPGAs can be reprogrammed to desired application or functionality requirements after manufacturing.

What is FPGA for?

FPGAs are mainly used to design application-specific integrated circuits (ASICs). First, you design the architecture of such a circuit. Then, you use an FPGA to build and check its prototype. Errors can be corrected.

How does MicroBlaze compare to other Xilinx FPGAs?

MicroBlaze’s overall throughput is substantially less than a comparable hard CPU core (such as the ARM Cortex-A9 in the Zynq ). Xilinx’s Vivado Design Suite is the development environment for building current MicroBlaze (or ARM – see Zynq) embedded processor systems in Xilinx FPGAs.

What is a MicroBlaze microprocessor?

This tutorial will only focus on the soft-core MicroBlaze microprocessor, which can be used in most of the Spartan-II, Spartan-3 and Virtex FPGA families. The hard-core embedded microprocessor mentioned is an IBM PowerPC 405 processor, which is only available in the Virtex-II Pro and Virtex-4 FX FPGA’s.

What is the latest version of MicroBlaze processor reference guide 2 ug984?

MicroBlaze Processor Reference Guide 2 UG984 (v2019.1) May 22, 2019 Revision History The following table shows the revision history for this document. Date Version Revision 22/05/2019 2019.1 Updated for Vivado 2019.1 release: • Added information about cache reset behavior.

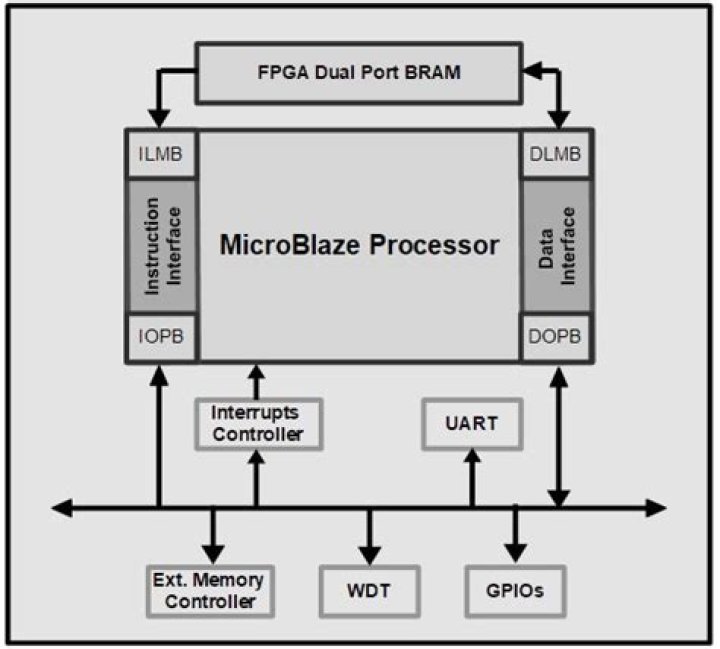

What is the architecture of MicroBlaze?

In terms of its instruction set architecture, MicroBlaze is similar to the RISC-based DLX architecture described in a popular computer architecture book by Patterson and Hennessy.
