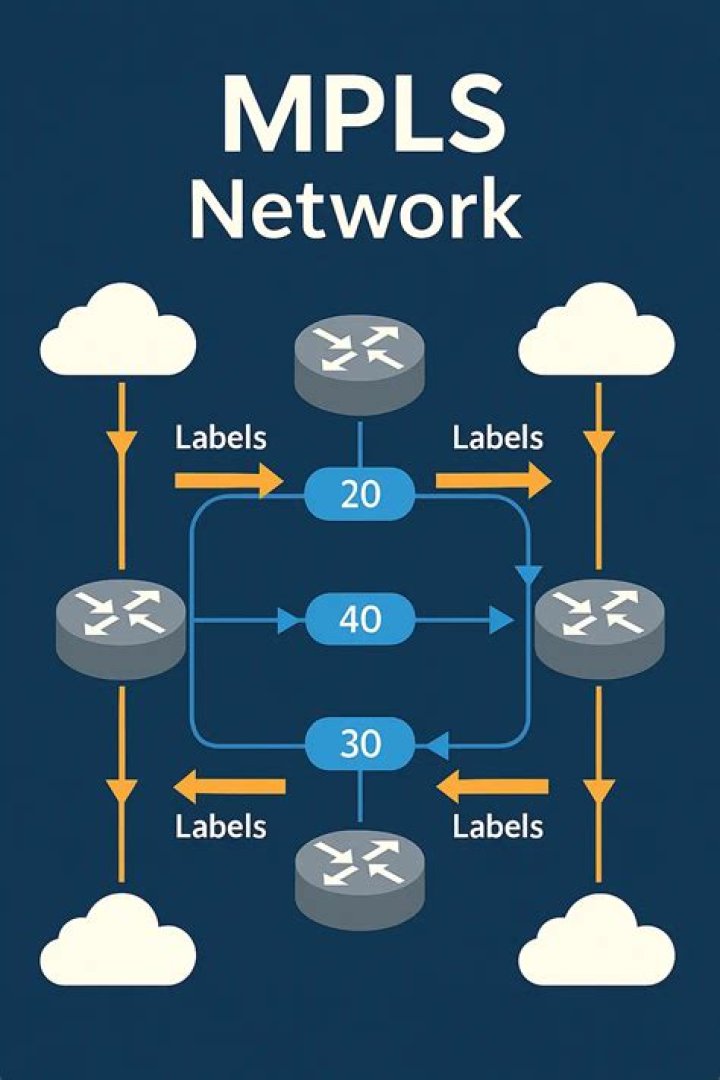

What is MPLS network diagram?
Multiprotocol Label Switching (MPLS). Computer and Network Examples. Multiprotocol Label Switching (MPLS) is a mechanism in high-performance telecommunication networks that implements the data transfer from one network node to another using the labels.
What is the MPLS standard?
Multiprotocol Label Switching (MPLS) is a routing technique in telecommunications networks that directs data from one node to the next based on short path labels rather than long network addresses, thus avoiding complex lookups in a routing table and speeding traffic flows.
What are the types of MPLS?
There are three primary types of MPLS VPNs: Layer 2 VPNs, Layer 2 circuits, and Layer 3 VPNs. All types of MPLS VPNs share certain components: The provider edge (PE) routers in the provider’s network connect to the customer edge (CE) routers located at customer sites.
What is MPLS operation?
Multiprotocol Label Switching (MPLS) is data forwarding technology that increases the speed and controls the flow of network traffic. With MPLS, data is directed through a path via labels instead of requiring complex lookups in a routing table at every stop.
What is the difference between VPN and MPLS?
VPN is a network layered on top of a computer network; MPLS directs and carries data from one network node to the next. VPN use cryptographic tunnelling protocols to provide high level security; MPLS is operable between the Data Link Layer and the Network Layer.
Can MPLS work without BGP?
The MPLS tunneling mechanism allows core routers to forward packets using labels only without the need to look up their destinations in IP routing tables. This means that edge routers are the only routers that need to have this information, so they need to run BGP.
What are the elements of a good MPLS network design?
MPLS Network Design Elements. We can say that three broad areas affect the MPLS network design: Deployed services (service portfolio items sold to customers) Users’ special requirements (service level agreements) Specifics of the network (such as bandwidth restrictions) The finished design uses the MPLS technologies to fulfill these requirements.
What is MPLS and how does it work?
The magic of MPLS is that the protocol specifics of the traffic passed into the core are of no interest to the core devices. This is because all such traffic is tagged with MPLS labels, which are used to direct the traffic through the core. This is termed the separation between forwarding and control. Figure 2 The MPLS network core.
What is MPLS “Label Switching”?
• MPLS does “label switching” instead: • The first device does a routing lookup, just like before: • But instead of finding a next-hop, it finds the final destination router. • And it finds a pre-determined path from “here” to that final router. • The router applies a “label” (or “shim”) based on this information.
What are MPLS signaling protocols?
• An MPLS signaling protocol maps LSPs to specific label values. • There are two main MPLS routing protocols in use today: • Label Distribution Protocol (“LDP”) • A simple non-constrained (doesn’t support traffic engineering) protocol. • Resource Reservation Protocol with Traffic Engineering (“RSVP-TE”)
