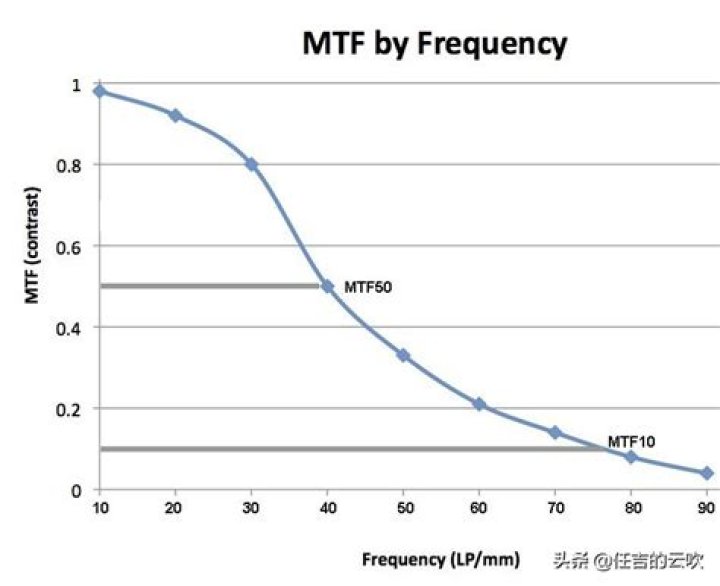

What is MTF50?
MTF50 (MTF stands for Modulation Transfer Function, also known as SFR – Spatial Frequency Response) is the common parameter used for measuring image sharpness – the most important image quality factor.
How does the MTF relate to the sharpness or blurriness of an image?
Since both images were sharp prior to resizing, The sharpness of both images is dominated by the resize operation, i.e., they are equally sharp. The MTF plots represent both the edge and the image. Note that sharpening increases MTF at high spatial frequencies; blurring (lowpass filtering) decreases it.
What is a good MTF?
Generally, contrast will typically be higher than resolution in MTF charts, so anything higher than 0.9 indicates excellent contrast, between 0.7 and 0.9 is generally very good, between 0.5 and 0.7 is average and anything below 0.5 is soft / bad.
What is MTF limit?
Diffraction MTF is a wave-optics calculation for which the only variables (for a given aperture shape) are the aperture diameter D, wavelength λ, and focal length f. The MTFdiffraction is the upper limit to the system’s performance; the effects of optical aberrations are assumed to be negligible.
Is higher MTF better?
In general, the higher and flatter the lines the better. Higher lines indicate better contrast (10 lines/mm) or resolution (30 lines/mm) while a flatter (left to right) line shows that the optical performance is close to the same at the edge of the image compared to the center.
What is SFR and MTF?
The relative contrast at a given spatial frequency (output contrast/input contrast) is called the Modulation Transfer Function (MTF) or Spatial Frequency Response (SFR). It is the key to measuring sharpness. Contrast decreases at high spatial frequencies.
WHAT IS lens acutance?
Acutance and Resolution Acutance is about how sharply an edge transitions. Look at the figures below. Figure 1-1 has a high acutance, the transition from white background to black bar is sudden and complete (it represents a very good lens).
What is Nyquist frequency MTF?
(Bottom-left) MTF (Frequency domain): The Spatial Frequency Response (MTF), shown to twice the Nyquist frequency (/docs/glossary. A key summary result is MTF50, the frequency where contrast falls to 50% of its low frequency value, which corresponds well with perceived image sharpness.
What is MTF camera?
Modulation Transfer Function or “MTF” is a measurement of the optical performance potential of a lens. MTF charts can give you a better understanding of the optical quality of various NIKKOR lenses, and can be useful references when researching, comparing and purchasing a lens.
