What is permissible tensile stress in concrete?
The permissible stress of concrete in direct tension is denoted by σtd. The values of σtd for member in direct tension for different grades of concrete are given in cl. The factors of safety of concrete in bending compression, direct compression and average bond for plain bars are 3, 4 and from 25 to 35, respectively.
What is the maximum stress in concrete?
For normal weight concrete, the maximum stress is realized at compressive strain ranges from 0.002 to 0.003. however, for lightweight concrete, the maximum stress reached at strain ranges from 0.003 to 0. 0035. The higher results of strain in both curves represent larger strength.
How do you calculate permissible stress in concrete?
The allowable stresses in bond (average)
- M15 grade of concrete = 0.6.
- M20 grade of concrete = 0.8.
- M25 grade of concrete = 0.9.
- M30 grade of concrete = 1.0.
- M40 grade of concrete = 1.2.
- M45 grade of concrete = 1.3.
- M50 grade of concrete = 1.4.
What is allowable compressive stress?
The allowable stress or allowable strength is the maximum stress (tensile, compressive or bending) that is allowed to be applied on a structural material.
What is permissible stress formula?
Stress is the amount of force per area on an object. The maximum stress that an object is expected to support is called the allowable stress. Divide the yield strength by the factor of safety to calculate the allowable stress. For example: allowable stress of A36 steel = 36,000 psi / 4.0 = 9,000 pounds per square inch.
What is limit stress?
It is well known that failure of a tensile member occurs when the stress caused by the actual load reaches the stress limit—that is, the strength of the member’s material (usually yield strength Sy for ductile materials and ultimate tensile strength Su for brittle materials).
Which strength of concrete is maximum?
In normal concrete work, the maximum compressive strength that can possibly be obtained is generally reckoned to be about 7,500 psi for a 28-day cylinder.
What are allowable stresses?
Allowable stress, or allowable strength, is the maximum stress that can be safely applied to a structure. This is usually defined in building codes and the strength of the metal in question.
What is maximum allowable stress value?
For example, if a 60,000 psi tensile strength material is used, the Maximum Allowable Stress Value is 15,000 psi. Division 2: Governs the design by “Analysis” and incorporates a lower safety factor of 3. Thus, the maximum allowable stress value for a 60,000 psi tensile strength material will become 20,000 psi.
What is maximum allowable stress?
The maximum allowable stress is the maximum unit stress permitted in a given material used in the vessel. The maximum allowable tensile stress values permitted for different materials are given in ASME Section II-D.

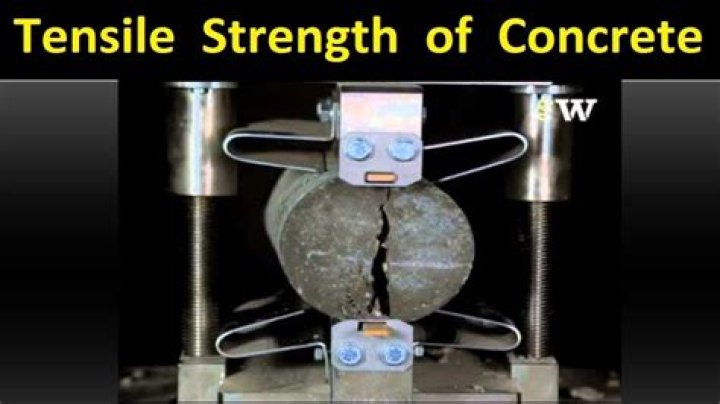

What is the tension strength of concrete?
The main general rule of thumb is the tension strength is 10% of the compression strength F’c but I need to reference the ACI or other code for calculations. ACI 318-02 has chapter 22, “Structural Plain Concrete” which would govern in areas that have adopted a code that uses/reference ACI 318.
What is the relationship between stress and tensile stress in reinforced masonry?
Stress is linearly proportional to strain within the allowable stress range. For reinforced masonry design, all tensile stresses are resisted by the steel reinforcement. The contribution of the masonry to the tensile strength of the element is ignored.
What is the tensile strength of concrete in Flexural Design?
However, consideration of the tensile strength of the concrete in flexural design is minimal as the section could crack and lose its stiffness provided by the tensile capacity of the concrete. However, in prestress designs, tensile strength is considered for the desing.
What are the tensile and compressive stresses in a beam?
A concrete beam subjected to bending action has the tensile and compressive stresses in the same section. However, consideration of the tensile strength of the concrete in flexural design is minimal as the section could crack and lose its stiffness provided by the tensile capacity of the concrete.
