What is rotation in linear transformation?

This is because the rotation preserves all angles between the vectors as well as their lengths. Thus rotations are an example of a linear transformation by Definition [def:lineartransformation]. The following theorem gives the matrix of a linear transformation which rotates all vectors through an angle of θ.

How do you prove that rotation is a linear transformation?

‖f(λv)−λf(v)‖2=‖λv−λv‖2=0 . f(λv)=λf(v) . Hence, our rotation f is a linear transformation….Whatever “rotation” means,

1. It is a map of some vector space V,
2. Which has a way of measuring “lengths” and “angles” of its vectors, and.
3. “Rotations” preserve those “lengths” and “angles”.

What is a rotation in transformation?

A rotation is a transformation in a plane that turns every point of a preimage through a specified angle and direction about a fixed point. The fixed point is called the center of rotation . The amount of rotation is called the angle of rotation and it is measured in degrees.

How do you prove rotation?

Under a rotation, the angle formed by any line m and its image m’ is the angle of the rotation. Proof: If a line n passes the center of rotation, then by definition angle[n,n’] is the angle of the rotation. For any line m, there is a parallel line n that passes the center of rotation.

What are 4 different types of linear transformations?

While the space of linear transformations is large, there are few types of transformations which are typical. We look here at dilations, shears, rotations, reflections and projections.

How do you write a rotation transformation?

to form Image B. To write a rule for this rotation you would write: R270◦ (x,y)=(−y,x). Notation Rule A notation rule has the following form R180◦ A → O = R180◦ (x,y) → (−x,−y) and tells you that the image A has been rotated about the origin and both the x- and y-coordinates are multiplied by -1.

Can a linear transformation go from R2 to R1?

a. The matrix has rank = 1, and is 1 × 2. Thus, the linear transformation maps R2 into R1.

How do you describe rotation?

A rotation is a turn of a shape. A rotation is described by the centre of rotation, the angle of rotation, and the direction of the turn. The direction of rotation can be described as clockwise (CW) or counterclockwise (CCW). For example, the shape below is rotated 90° CW about vertex A.

Is rotation a linear transformation?

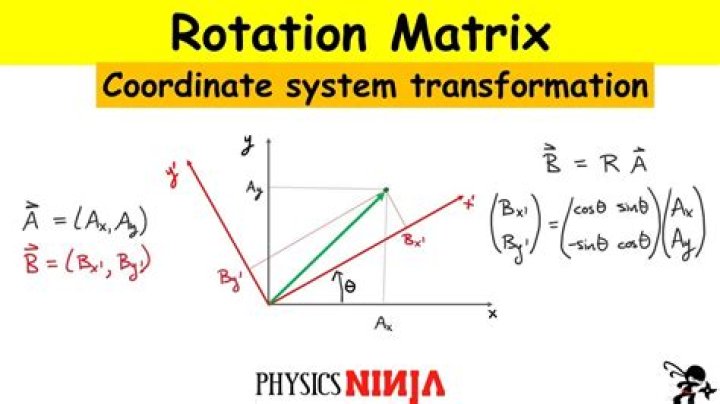

So rotation definitely is a linear transformation, at least the way I’ve shown you. Now let’s actually construct a mathematical definition for it. Let’s actually construct a matrix that will perform the transformation. So I’m saying that my rotation transformation from R2 to R2 of some vector x can be defined as some 2 by 2 matrix.

Is a rotation transformation 2 by 2 matrix?

So I’m saying that my rotation transformation from R2 to R2 of some vector x can be defined as some 2 by 2 matrix. And it’s 2 by 2 because it’s a mapping from R2 to R2 times any vector x. And I’m saying I can do this because I’ve at least shown you visually that it is indeed a linear transformation. And how do I find A?

What is a linear transformation in R2?

Linear transformations which reflect vectors across a line are a second important type of transformations in R 2. Consider the following theorem. Let Q m: R 2 → R 2 be a linear transformation given by reflecting vectors over the line y → = m x →. Then the matrix of Q m is given by

What are the conditions for a linear transformation to be valid?

Now the second condition that we need for this to be a valid linear transformation, is that the rotation through an angle of theta of a scaled up version of a vector should be equal to a scaled up version of the rotated vector. And I’ll just do another visual example here, so that’s just my vertical axis.
