What is skin friction of soil?
Skin friction acting along the shaft would stress the surrounding soil. Skin friction acts in an upward direction along the pile. Equal and opposite forces act on the surrounding soil. The force due to pile on surrounding soil would be in downward direction (Fig. 13.12).
What is end bearing and skin friction?
End bearing pile. Friction pile. 1) When piles transfer load of the building through a soft soil strata to a suitable bearing stratum at greater depths then it is called a bearing pile. 1) When piles transfer the loads only by means of skin resistance without any end bearing then the piles are called as friction piles.
What is drilled shaft foundation?
Drilled shafts, also referred to as drilled piers, caissons or bored piles, are deep foundation solutions used to support structures with large axial and lateral loads by excavating cylindrical shafts into the ground and filling them with concrete.
How do you calculate negative skin friction on a pile?

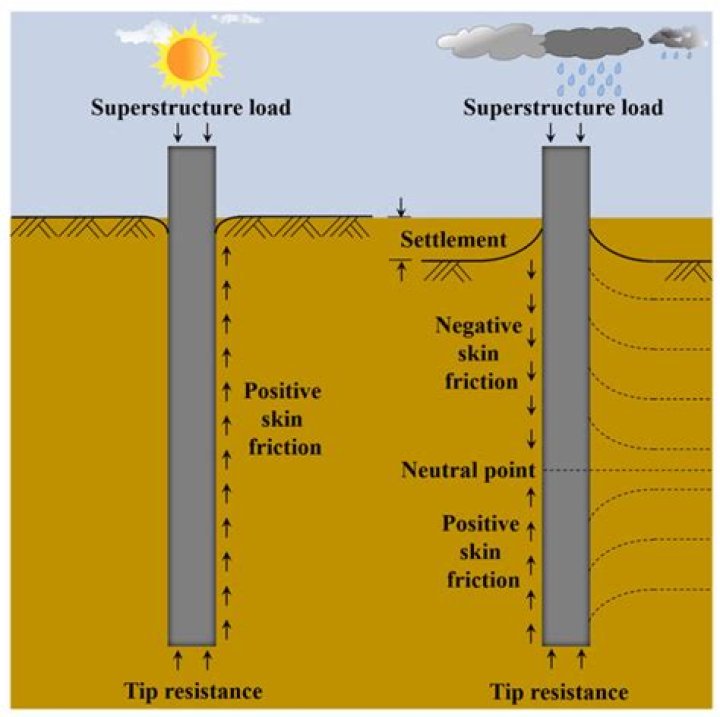

Calculating Negative Skin Friction
- Q = Average downward load transferred to a pile in a pile group.
- A = horizontal area bounded by the pile group or cross-sectional area of piles and enclosed soil.
- N = no.
- g = unit weight of fill or compressible soil layers.
What is skin friction coefficient?
The skin friction coefficient is an important dimensionless parameter in boundary-layer flows. It specifies the fraction of the local dynamic pressure, 1 2 ρ U 2 , that is felt as shear stress on the surface.
Which one the test is used to determine skin friction and end bearing separately?
2. Cyclic pile load test – It is a special case of vertical load test and is used to separate skin friction and point bearing resistance with in the vertical load capacity. 3. Lateral load test – It is used to determine the safe lateral load.
How are friction piles installed?
use in building construction The friction pile of wood or concrete is driven into soft soil where there is no harder stratum for bearing beneath the site. The building load is supported by the surface friction between the pile and the soil.
How do you calculate allowable skin friction?
Calculate total allowable skin friction by multiplying the perimeter of the shaft by the unit value for allowable skin friction derived from Figure 5-1, Figure 5-3, or laboratory data or any combination thereof. Apply a reduction factor of 0.7 to allowable skin friction values derived from Figure 5-1 or from laboratory testing.
How do you calculate skin friction in cohesive soils?
There are several methods to estimate skin friction in cohesive soils. One is the alpha method where skin friction is equal to alpha times cohesion. Alpha varies with soil strength, but for this range alpha is 0.55.
What is a drilled shaft?
Definitions and Use (cont’d.) A drilled shaft is a deep foundation that is constructed by placing fluid concrete in a drilled hole, typically with reinforcing steel installed in the excavation prior to the placement of the concrete.
How to test the integrity of drilled shafts?
Various testing methods are available to determine the integrity of drilled shafts, which are Crosshole Sonic Logging, Gamma-Gamma testing, and Thermal Integrity Profiling (TIP). TIP is the preferred testing method, as it is done during the curing of the concrete and does not delay construction.
