What is SMAW GMAW?
GMAW. A short and small diameter rod is used as electrode for Shielded Metal Arc Welding (SMAW). Electrode length is typically restricted to 60cm. Gas Metal Arc Welding (GMAW) employs a small diameter but long consumable electrode that comes in the form of a wire.
What are the four types of GMAW welding?
There are four primary methods of metal transfer in GMAW, called globular, short-circuiting, spray, and pulsed-spray, each of which has distinct properties and corresponding advantages and limitations.
What is pulsed GMAW?
Pulsed GMAW is a modified spray transfer process in which the power source switches between a high peak current or voltage and a low background current or voltage between 30 to 400 times per second. During this switch, the peak current pinches off a droplet of wire and propels it to the weld joint.
What is electroslag welding process?
Electroslag Welding is a welding process, in which the heat is generated by an electric current passing between the consumable electrode (filler metal) and the work piece through a molten slag covering the weld surface. Prior to welding the gap between the two work pieces is filled with a welding flux.
Is MIG SMAW?
SMAW and GMAW differ in how they shield the molten electrode from atmospheric gases. SMAW encases the electrode in a layer of material known as flux. For this reason, GMAW also goes by the name of metal inert gas welding, or MIG welding.
What is GTAW and SMAW?

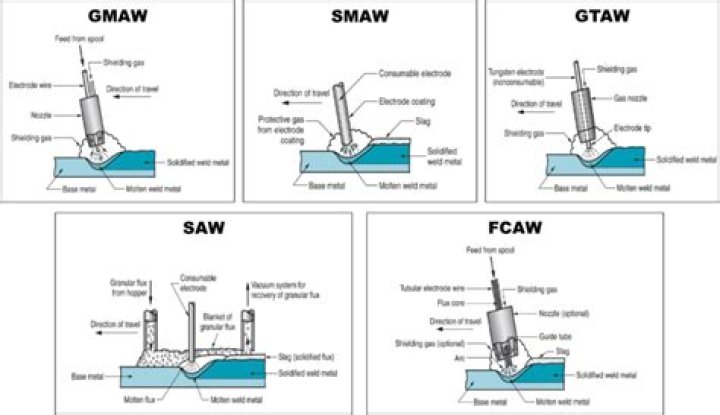

Shielded metal arc welding (SMAW), gas metal arc welding (GMAW) and gas tungsten arc welding (GTAW) are three such arc welding processes—each of them offers certain advantages over others. SMAW—Consumable electrode. GMAW—Consumable electrode. GTAW—Non-consumable electrode.
What is the meaning of GMAW welding?
Gas metal arc welding
Gas metal arc welding (GMAW), also known as metal inert gas (MIG) welding, uses a continuous solid wire electrode that travels through the welding gun, which is accompanied by a shielding gas to protect it from contaminants.
How does pulsed transfer operate?
The welding power source rapidly switches the welding output between high peak currents and low background current. The peak current pinches off a spray-transfer droplet and propels it toward the weldment for good fusion. The background current maintains the arc, but it is too low for metal transfer to occur.
What is electroslag welding used for?
Electroslag welding is used mainly to join low carbon steel plates and/or sections that are very thick. It can also be used on structural steel if certain precautions are observed, and for large cross-section aluminium busbars.
Why is electroslag welding an important working principle of electroslag welding?
Electroslag welding works on the principle of joining two metals with heat generation between them due to arc and electric resistance. The arc is first created by applying a potential difference between the base and the electrode. This arc melts the filler and fills the cavity.
