What is the basic principle of digital to analog converter?

A Digital to Analog Converter (DAC) converts a digital input signal into an analog output signal. The digital signal is represented with a binary code, which is a combination of bits 0 and 1. This chapter deals with Digital to Analog Converters in detail.

What are the steps in analog to digital conversion?

ADCs follow a sequence when converting analog signals to digital. They first sample the signal, then quantify it to determine the resolution of the signal, and finally set binary values and send it to the system to read the digital signal. Two important aspects of the ADC are its sampling rate and resolution.

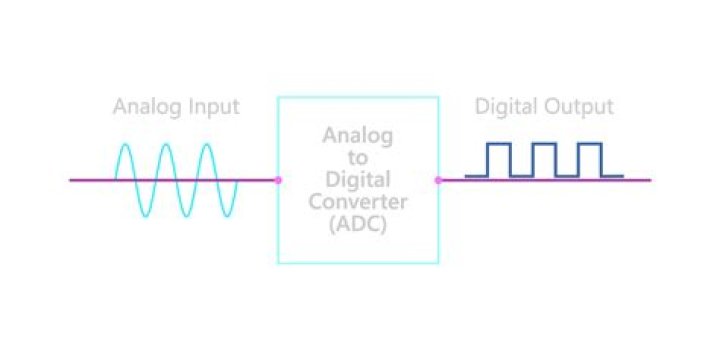

How does a analog to digital converter work?

Analog to Digital Converter samples the analog signal on each falling or rising edge of the sample clock. In each cycle, the ADC gets the analog signal, measures it, and converts it into a digital value. The ADC converts the output data into a series of digital values by approximates the signal with fixed precision.

What is the quickest method of analogue to digital conversion?

8.4 PARALLEL A/D CONVERTER Parallel A/D conversion (sometimes called flash conversion) is the fastest technique available and the simplest to understand. However, its practicality is limited to small numbers of bits, since it requires 2N – 1 comparator circuits in order to produce an N-bit digital output.

What is DAC and its types?

Digital to Analog Converter (DAC) – Types, Working, Block Diagram & Applications. Signals are mainly classified into two types i.e. Analog & Digital signal. Analog to Digital (ADC) & Digital to analog converter (DAC) are the two types of converters that we use in our daily life to convert the signals into each other.

What are the main elements of DAC?

1. The DAC consists of a logic circuit connected to resistors, each of which corresponds to a particular bit (for instance, an 8-bit DAC would have eight resistors, corresponding to 20 to 27). The resistors are of values weighted in a binary format (each resistor is a power of two stronger than the one before it).

What are the 3 phases of the analog to digital conversion process?

let us consider the operation of the ADC, which is the heart of the conversion process. Analogtodigital conversion occurs in three phases: (1) sampling, (2) quantization, and (3) encoding.

What is the need of analog to digital conversion?

Analog to Digital Conversion An analog to digital converter (ADC), converts any analog signal into quantifiable data, which makes it easier to process and store, as well as more accurate and reliable by minimizing errors.

What is the need of analog to digital converter?

What is meant by analog to digital converter?

Analog-to-digital converters, abbreviated as “ADCs,” work to convert analog (continuous, infinitely variable) signals to digital (discrete-time, discrete-amplitude) signals. In more practical terms, an ADC converts an analog input, such as a microphone collecting sound, into a digital signal.

Which analog to digital converter is best for conversion?

Delta converters are good choices when it comes to reading real-world signals. Most signals from physical systems are not sporadic. Some converters combine the delta and successive approximation approaches which works well when high frequencies are known to be small in magnitude.

How does an analogue to digital converter work?

Basically an analogue to digital converter takes a snapshot of an analogue voltage at one instant in time and produces a digital output code which represents this analogue voltage. The number of binary digits, or bits used to represent this analogue voltage value depends on the resolution of an A/D converter.

What is a high speed data converter?

The continuing expansion of broadband communications and high performance imaging applications has put a particular emphasis on high speed data conversion: converters capable of handling signals with bandwidths of 10 MHz to more than 1 GHz.

How do a/D converters work?

For an A/D converters to be useful it has to produce a meaningful digital representation of the analogue input signal. Here in this simple 2-bit ADC example we have assumed for simplicity that the input voltage V IN is between 0 and 4 volts, so have set V REF and the resistive voltage-divider network to drop 1 volt across each resistor.

How many binary digits are used to represent an analogue voltage?

The number of binary digits, or bits used to represent this analogue voltage value depends on the resolution of an A/D converter. For example a 4-bit ADC will have a resolution of one part in 15, (2 4 – 1) whereas an 8-bit ADC will have a resolution of one part in 255, (2 8 – 1).
