What is the correct timing on a Chevy 350?

The timing can vary between 2 and 12 degrees BTDC, the recommended spark plugs are different and even the plug gaps vary. In most cases starting out with 12 degrees of initial advance is about right.

What should timing be set at on SBC?

Depending on your cylinder heads, compression ratio, camshaft, and centrifugal advance curve in the distributor, “normal” base timing for a street high-perf small-block Chevy is somewhere in the 12- to 18-degree before top dead center (BTDC) range, with total timing at full centrifugal advance about 34 to 36 degrees …

How do I know if my cam timing is off?

If the engine timing of the cam is off, your car will either be running rough or not at all. If the ignition timing is the problem, it isn’t as easy to notice because it has four cycles: Intake valve sucks in air while fuel is delivered by the injectors. The fuel mixture is reduced.

What happens if you advance timing too much?

Overheating: If the air and fuel mixture is ignited too soon in the combustion process, the heat generated will increase. This can damage different parts of the engine. Low Power: Ignition timing that is retarded too far can result in the spark plug igniting the mixture too late.

Does cam timing affect ignition timing?

Contrary to what a lot of people think, cam “timing” and ignition “timing” have nothing to do with each other anymore than a timing “belt” and a fan “belt” have anything to do with each other. Advancing a cam opens the intake valve sooner, which brings the power curve down to a little lower RPM.

What should the timing be on a Chevy 350?

What should the timing be on a Chevy 350? The timing can vary between 2 and 12 degrees BTDC, the recommended spark plugs are different and even the plug gaps vary. In most cases starting out with 12 degrees of initial advance is about right.

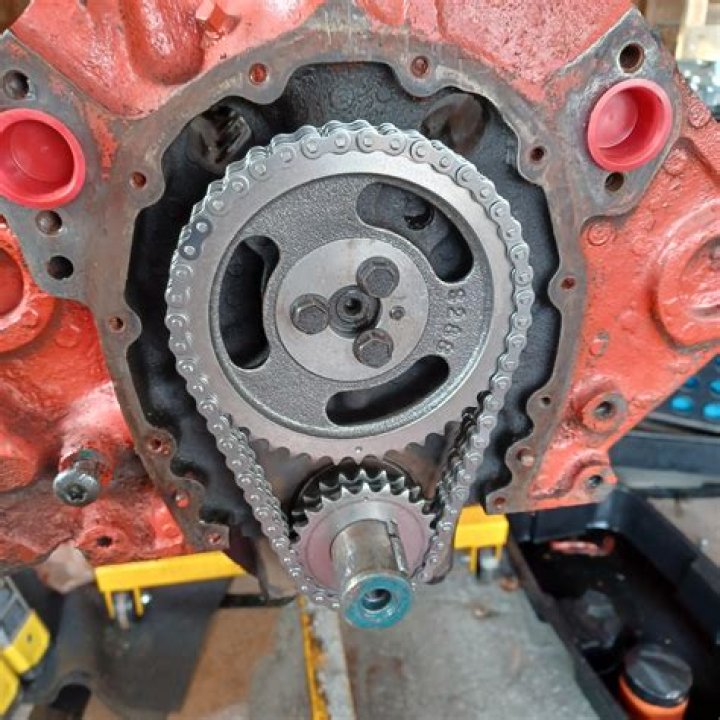

Does the timing chain need to be at TDC in 350 Chevy?

When installing a cam and then aligning the timing chain marks in a 350 chevy does the #1 piston need to be at TDC when this is being done? Yes. #1 and #6 will be at TDC.

What should the initial timing be on a small block Chevy?

In most cases starting out with 12 degrees of initial advance is about right. Similarly, you may ask, what should the timing be on a small block Chevy? The initial timing should be 4 degrees before top dead center (BTDC). If the mark is adjacent to a higher number BTDC, the distributor must be rotated clockwise to bring it down to 4 degrees.

What happens if you put too much advance on timing?

Too much advance will cause hard starting and pre-ignition. Beside this, what should my timing be set at? If it has too much advance, then you need to limit the amount of advance inside the distributor and give it more “initial” timing on the crank to achieve the 34-36 degrees of desired total.
