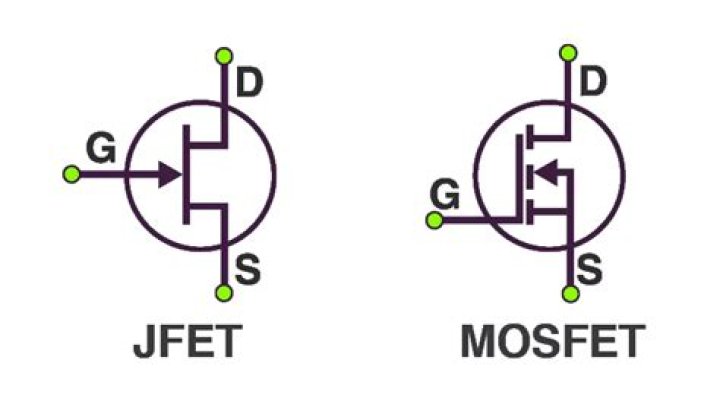

What is the difference between JFET and MOSFET?
JFET(Junction Gate Field-Effect Transistor) is a three-terminal semiconductor device. MOSFET(Metal–Oxide–Semiconductor Field-Effect Transistor) is a four-terminal semiconductor device. It can only operates in the depletion mode. It operates in both depletion mode and enhancement mode.
What is similarities between JFET and MOSFET?
Difference between JFET and Mosfet:
| JFET | Mosfet |
|---|---|
| JFET Operates only in depletion mode | Mosfet operates in both Enhancement and Depletion mode |
| Reverse biasing of the gate terminal controls the Conductivity | Carriers induced in the channel controls the Conductivity |
| JFET has High Gate current | Mosfet has low Gate current |
How is MOSFET better than JFET?
MOSFETs have input impedance much higher than that of JFETs. This is due to negligibly small leakage current. JFETs have characteristic curves more flat than those of MOSFETs indicating a higher drain resistance. Thus MOSFET devices are more useful in electrometer applications than are the JFETs.
Is FET and MOSFET the same?
The MOSFET is a special type of FET whose Gate is insulated from the main current carrying channel. It is also called the IGFET or the Insulated Gate Field Effect Transistor. The insulation makes the input impedance of the MOSFET even higher than that of a FET. The working of the MOSFET is very similar to the FET.
Why we use MOSFET instead of JFET?
JFETs have high input impedance on the order of 1010 ohms which makes them sensitive to input voltage signals. MOSFETs offer even higher input impedance than the JFETs which makes them much more resistive at the gate terminal, thanks to the metal oxide insulator.
Can I replace a JFET with a MOSFET?
Re: Can a JFET replace a MOSFET? Unlikely, without considerable circuit changes. JFETs need negative bias to tame them, MOSFETs need positive bias to turn them on (with a few exceptions). The shape of the gate voltage vs drain current is similar, just shifted sideways.
Can you replace JFET with MOSFET?
Which property of Mosfet distinguishes it from JFET?
The factor that generates the key difference between JFET and MOSFET is that a JFET operates in only depletion mode. While MOSFET operates in both depletion and enhancement mode. JFET is normally termed as ON devices. As the negative gate to source voltage turns the device to OFF state.
Is JFET a MOSFET?
Both are unipolar devices but with different composition. While JFET stands for Junction Field-Effect Transistor, MOSFET is short for Metal Oxide Semiconductor Field Effect Transistor. The former is a three-terminal semiconductor device, whereas the latter is a four-terminal semiconductor device.
What are the benefits of JFET over BJT?
FET gas high input impedance of several mega ohms.
What is the full meaning of JFET?
A junction field effect transistor (JFET) is the the simplest type of three-terminal semiconductor transistor. JFETs are widely employed as electronically controlled switches, voltage-controlled resistors and amplifiers.
What does JFET stand for?
JFET stands for Junction Field Effect Transistor . Suggest new definition. This definition appears very frequently and is found in the following Acronym Finder categories: Information technology (IT) and computers.
What is JFET transistor and how it works?
How a JFET Works The JFET is a Voltage Controlled Transistor. The Pinch Off Voltage. Operation Below Pinch Off. Operation Above “Pinch Off” When a voltage is applied between drain and source (V DS) current flows and the silicon channel acts rather like a conventional resistor (The Ohmic Region). JFET Characteristics.
