What is the difference between QWidget and QDialog?

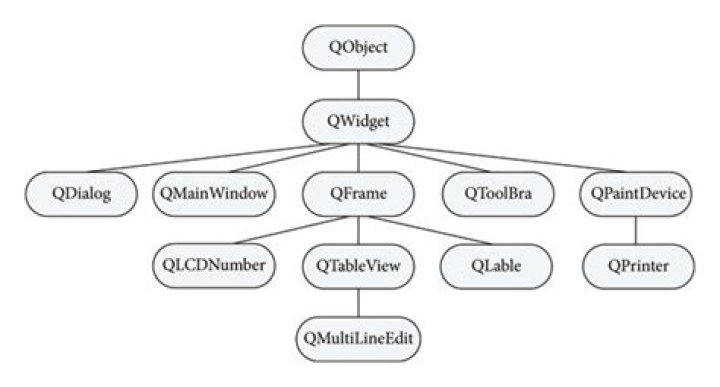

2 Answers. A QWidget is the base class for all drawable classes in Qt. Any QWidget -based class can be shown as a window by showing it when it has no parent. A QDialog is based on QWidget , but designed to be shown as a window.
What is the difference between layout and widget?
From the docs: Layouts are an elegant and flexible way to automatically arrange child widgets within their container. Each widget reports its size requirements to the layout through the sizeHint and sizePolicy properties, and the layout distributes the available space accordingly.
What is the difference between QWidget and QMainWindow?
A QWidget is the base class for all drawable classes in Qt. Any QWidget -based class can be shown as a window by showing it when it has no parent. QMainWindow is designed around common needs for a main window to have. It has predefined places for a menu bar, a status bar, a toolbar, and other widgets.
What is difference between widget and Mainwindow in Qt?
A dialog is a top-level widget, that is always displayed in separate window (i.e. you can’t put it on another widget). A main window is also a top-level widget, but it has a predefined layout that includes a menu bar, a status bar and place for tool bars and dock areas.
How do I add a layout to QWidget?
Select the widgets you want in the layout and click with the right mouse button and there’s a “Lay out >” submenu, choose one of the layouts that suit you.
Can container have children?
Theoretically, it is possible. A child widget can have a list of children. In that case, a container will size itself to the size of the incoming children.
How do I create a Qt widget?
Creating a Qt Widget Based Application
- Select File > New File or Project > Application (Qt) > Qt Widgets Application > Choose.
- In the Name field, type TextFinder.
- In the Create in field, enter the path for the project files.
What is the best way to layout a qwidget?
The easiest way to give your widgets a good layout is to use the built-in layout managers: QHBoxLayout, QVBoxLayout, QGridLayout, and QFormLayout. These classes inherit from QLayout, which in turn derives from QObject (not QWidget). They take care of geometry management for a set of widgets.
How do I add a widget to a layout in qmainwindow?
Let’s add our widget to a layout. Note that in order to add a layout to the QMainWindow we need to apply it to a dummy QWidget. This allows us to then use .setCentralWidget to apply the widget (and the layout) to the window.
How can I change the size of a widget in Qt?
If the widget uses one of Qt’s layouts, this is already taken care of. If the widget does not have any child widgets, or uses a manual layout, you can change the behavior of the widget using any or all of the following mechanisms: Reimplement QWidget::sizeHint () to return the preferred size of the widget.
How do I pass a parent to a qwidget?
When you use a layout, you do not need to pass a parent when constructing the child widgets. The layout will automatically reparent the widgets (using QWidget::setParent ()) so that they are children of the widget on which the layout is installed. is exactly the same.
