What is the formula to calculate total reading with a Vernier caliper?

Answer: Now find total reading using the equation, TR = MSR+VSR = N+(n x L.C) and apply the zero correction. Take the mean of the different values of the diameter and show that in the result with the proper unit.

What is the maximum reading of a Vernier caliper?

The maximum capacity of a Vernier caliper is the difference between the smallest and largest measurement reading. Usually, it is the total length of the main scale. Vernier calipers, generally, have a range of 300 mm.

What is a metric Vernier caliper?

The vernier scale of a metric vernier caliper has a measuring range of 1 mm. In the example we will be looking at, the vernier scale is graduated in 50 increments. Each increment represents 0.02mm. However, some vernier scales are graduated in 20 increments, with each one representing 0.05mm.

What is MSR and VSR?

In vernier calliper MSR means main scale reading and VSR means vernier scale reading. Main scale contains divisions (MSD) with value of each division 1 mm. Vernier Scale is a scale which can slide over Main scale and contains 10 or 15 divisions (VSD) depending on the type of instrument.

What is the LC of the vernier calipers shown in the?

The formula of Vernier calliper least counts is determined by dividing the smallest reading of the main scale with the total number of vernier scale divisions. The LC of vernier calliper is the difference between one smallest main scale reading and one smallest vernier scale reading of 0.1 mm 0r 0.01 cm.

What is the reading of vernier caliper with the least count of 0.1 mm?

Therefore, the zero mark of the Vernier scale has gone 7 tenths of a millimeter past the 11.0 mm mark, giving a total reading of 11.7 mm. The least count of the Vernier caliper is 0.1 mm. That is, 0.1 mm is the smallest scale reading that can be made without estimation.

What are vernier calipers and how it is used for measurement?

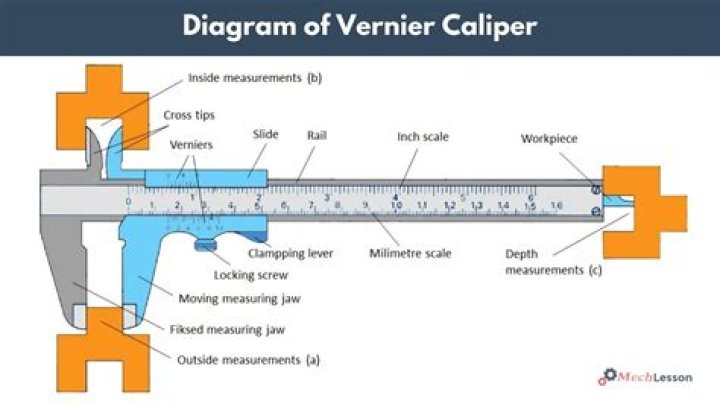

Understand the parts of the Vernier caliper. A Vernier caliper has main jaws that are used for measuring external diameter , as well as smaller jaws that are used for measuring the internal diameter of objects. Some models also have a depth gauge.

How to use a vernier caliper?

Slide one of the jaws against the object. The caliper has two types of jaws. The larger ones tighten around an…

  • Read the main scale where it lines up with the sliding scale’s zero. The main scale on a Vernier caliper typically…
  • Read the Vernier scale. Find the first mark on the Vernier scale that lines up perfectly with…

    • How to read a vernier scale?

    First take the reading on the main scale.

  • Now take the reading on the secondary scale. This is the value of the scale that aligns with the centre line of the main scale.
  • Now add the two readings to get the final reading.
  • In case of a micromanipulator,the linear scale is read first. Then the rotational scale is read. The rotational scale has 50 increments.

    • How to read a caliper?

    Zero out the dial: close the jaws and check that the indicator points to “0” on the dial face.

  • Adjust the jaws to measure the object.
  • First,look at the sliding jaw and note the last main scale graduation that it passed.
  • Next,look at the dial and determine which number the hand is pointing.
  • The final reading is the sum of these two readings.
