What is the function of cycloconverter?
A cycloconverter (CCV) or a cycloinverter converts a constant amplitude, constant frequency AC waveform to another AC waveform of a lower frequency by synthesizing the output waveform from segments of the AC supply without an intermediate DC link (Dorf 1993, pp.
What is synchronous cycloconverter?
The cycloconverter thyristors are commutated by the source voltage at low motor speed and by the motor electromotive force (EMF) at higher speed. The transition between the two regions is smooth and automatic.
What is load commutated cycloconverter?
A cycloconverter is a naturally commutated converter in which the output frequency and voltage can be controlled independently and continuously. It consists of back to back connected controlled rectifiers whose output voltage and frequency can be controlled by tuning firing angles of rectifiers.
What is 3 phase cycloconverter 3 phase?
Three Phase to Three Phase Cycloconverters: The Load for a Three Phase CCV will normally be a Three Phase Star connected load like the stator winding of a Motor. This converters take in Three Phase AC voltage with fixed frequency as input and provides Three Phase AC voltage with Variable frequency.
What do you understand by the cycloconverter?
Definition of cycloconverter : an electronic device for controlling the speed of a synchronous motor by supplying it with alternating current of grid-controlled frequency.
What do you mean by cycloconverter?
What is single phase cycloconverter?

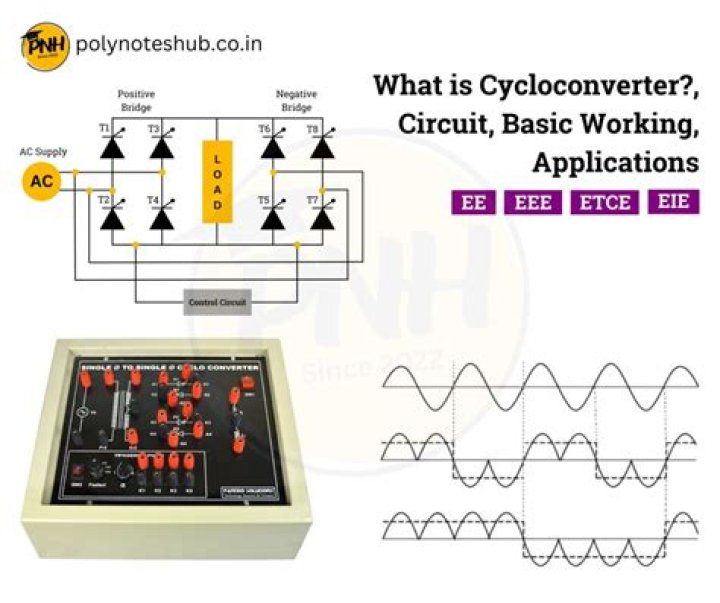

This converter consists of back-to-back connection of two full-wave rectifier circuits. The input voltage, vs is an ac voltage at a frequency, Single phase cycloconverter. This converter consists of back-to-back connection of two full-wave rectifier circuits.
What are the two types of cycloconverter?
There are two main types of cycloconverters:
- Blocking mode Cycloconverters.
- Circulating current Cycloconverters.
What is load commutated?
Load commutation of SCR is a forced commutation technique in which SCR is forced to turn off. Turning off an SCR essentially requires its anode current to fall below holding current and a reversed biased voltage must be present across SCR for sufficient time so that SCR may regain its blocking state.
What is line commutated inverter?
Line-commutated inverter: An inverter that is tied to a power grid or line. The commutation of power (conversion from DC to AC) is controlled by the power line, so that, if there is a failure in the power grid, the Photovoltaic system cannot feed power into the line.
What is the principle of a cyclo converter?
Cyclo-Converters – Principle,Applications. Basically, cyclo-converters are AC to AC converters and are used to vary the frequency of a supply to a desired load frequency. These are naturally commutated, direct frequency converters that use naturally commutated thyristors.
Why do we need forced commutation in step-up Cyclo-converters?
But in case of step-up cyclo-converter, forced commutation circuits are needed to turn OFF SCRs at desired frequency. Such circuits are relatively very complex. Therefore, majority of cyclo-converters are of step-down type that lowers the frequency than input frequency.
What is a line commutated converter?
Line commutated converters (LCCs) are converters where the operating mode is determined by the ac supply. They allow the following forms of power conversion: ac to dc, ac to ac, dc to ac. Controlled rectifiers convert an ac voltage from the supply to controlled dc voltage.
What are the two types of cycloconverters?
There are two types of cycloconverters− Step Up cycloconverter − These types use natural commutation and give an output at higher frequency than that of the input. Step Down cycloconverter − This type uses forced commutation and results in an output with a frequency lower than that of the input.
