What is the IEEE 754 standard for floating point representation?
The IEEE Standard for Floating-Point Arithmetic (IEEE 754) is a technical standard for floating-point arithmetic established in 1985 by the Institute of Electrical and Electronics Engineers (IEEE). rounding rules: properties to be satisfied when rounding numbers during arithmetic and conversions.
What are the two main standards for floating point representation?
IEEE 754 numbers are divided into two based on the above three components: single precision and double precision. Special Values: IEEE has reserved some values that can ambiguity. Zero is a special value denoted with an exponent and mantissa of 0. -0 and +0 are distinct values, though they both are equal.
How do you round IEEE 754?
IEEE 754 defines different rounding rules to use when calculating arithmetic results. The system chooses the nearer of the two possible outputs. If the correct answer is exactly halfway between the two, the system chooses the output where the least significant bit of Frac is zero.
How do you calculate floating addition?
The steps for adding floating-point numbers with the same sign are as follows:
- Extract exponent and fraction bits.
- Prepend leading 1 to form the mantissa.
- Compare exponents.
- Shift smaller mantissa if necessary.
- Add mantissas.
- Normalize mantissa and adjust exponent if necessary.
- Round result.
What are the bias values for single and double precision IEEE 754?
In single precision, the bias is 127, so in this example the biased exponent is 124; in double precision, the bias is 1023, so the biased exponent in this example is 1020.

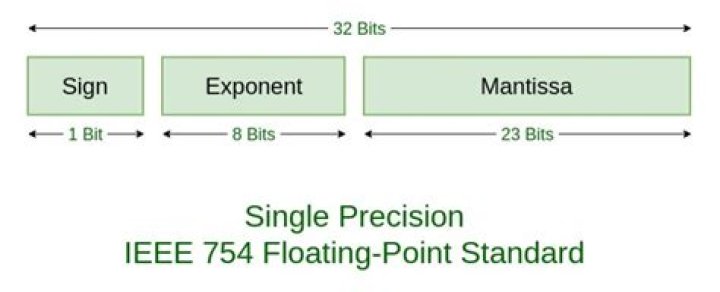

What is IEEE 754 single precision floating point?
IEEE single-precision floating point computer numbering format, is a binary computing format that occupies 4 bytes (32 bits) in computer memory. In IEEE 754-2008 the 32-bit base 2 format is officially referred to as binary32. It was called single in IEEE 754-1985.
What is the range of the IEEE 754 32-bit floating point representation?
A signed 32-bit integer variable has a maximum value of 231 − 1 = 2,147,483,647, whereas an IEEE 754 32-bit base-2 floating-point variable has a maximum value of (2 − 2−23) × 2127 ≈ 3.4028235 × 1038.
How do you round errors?
In scientific (power-of-10) notation, that quantity is expressed as 2.99792458 x 108. Rounding it to three decimal places yields 2.998 x 108. The rounding error is the difference between the actual value and the rounded value, in this case (2.998 – 2.99792458) x 108, which works out to 0.00007542 x 108.
What is IEEE Standard 754 floating point?
IEEE Standard 754 floating point is the most common representation today for real numbers on computers, including Intel-based PC’s, Macintoshes, and most Unix platforms. This article gives a brief overview of IEEE floating point and its representation.
What is the difference between IEEE-754 and Base-2 decimal?
As this format is using base-2, there can be surprising differences in what numbers can be represented easily in decimal and which numbers can be represented in IEEE-754. As an example, try “0.1”. The conversion is limited to 32-bit single precision numbers, while the IEEE-754-Standard contains formats with increased precision.
How do you find the mantissa of a IEEE-754 number?
The value of a IEEE-754 number is computed as: The sign is stored in bit 32. The exponent can be computed from bits 24-31 by subtracting 127. The mantissa (also known as significand or fraction) is stored in bits 1-23.
Which browsers does IEEE 754 support?
(See info at bottom of page.) This is a little calculator intended to help you understand the IEEE 754 standard for floating-point computation. It is implemented in JavaScript and should work with recent desktop versions of Chrome and Firefox . I haven’t tested with other browsers.
