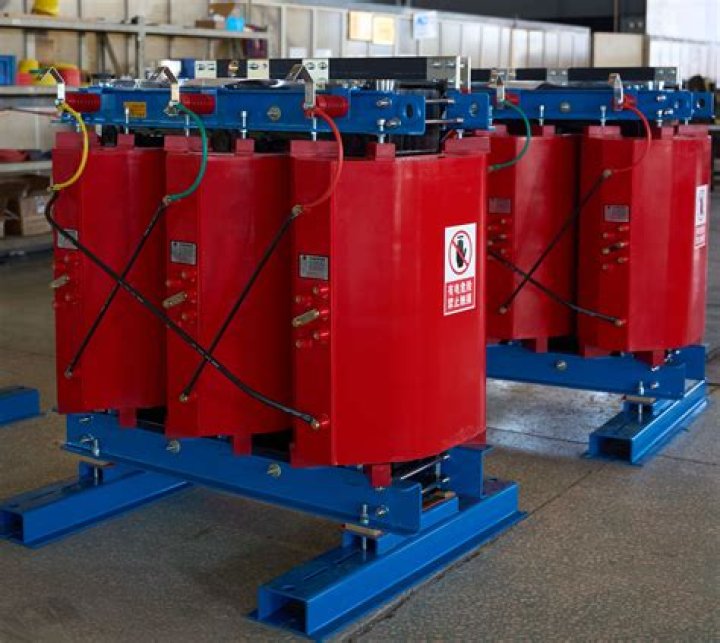

What is the impedance on a dry type transformer?
Table of dry-type transformer normal impedance ranges
| Single-phase | Three-phase | |
|---|---|---|
| kVA | Normal impedance range (%) | Normal impedance range (%) |
| 50 | 1.5 – 10.0 | 1.5 – 10.0 |
| 100 | 2.0 – 10.0 | 1.5 – 10.0 |
| 167 | 2.5 – 10.0 | 2.5 – 10.0 |
Do transformers have impedance?
The ratio of voltage applied to circulate full load current to the primary voltage is the percentage impedance of the transformer. Thus a transformer with a primary rating of 110V which requires a voltage of 10V to circulate the rated current in the short-circuited secondary would have an impedance of 9%.
What is Z of transformer?
The percent impedance (%Z) is the percent of the rated load impedance possessed by a transformer. The percent impedance is important in that it allows us to: Calculate available fault currents (both individual and bank).
How do you calculate the impedance of a transformer?
Effective Percent Impedance
- Transformer reactance Xt = (kV2/MVA) x %Z/100 = (0.482 / 0.5) x 0.06 = 0.027648 ohms.
- Rated secondary current = 500,000 / (480 x 1.732) = 601.4 amps.
- Actual Load current = 300 amps.
- Voltage drop at actual load = 300 x 1.732 x 0.027648 = 14.36 volts (14.36 / 480 = 0.0299, or 3% of 480 volts)
What is the advantage of dry type transformer?
Advantages of Dry Type Transformer Maintenance and pollution-free solution. Easy installation. Side clearance is less. Environmentally friendly.
What is a dry-type transformer?
Dry-type transformers fundamentals What is a transformer? A transformeris an electrical device that is used in AC power distribution systems to safely “step up” or “step down” voltages to meet the incoming power requirements of connected equipment.
What is the impedance of a transformer with 3 windings?
The impedance of a transformer having three or more windings or having zig-zag windings shall not vary from the guaranteed value by more than ± 10%. The impedance of an auto-transformer shall not vary from the guaranteed value by more than ± 10%.
What is the % Z of a transformer?
%Z is related to the short circuit capacity of the transformer during short circuit conditions. For a two winding transformer with a 5% impedance, it would require 5% input voltage applied on the high voltage winding to draw 100% rated current on the secondary winding when the secondary winding is short-circuited.
What is effective impedance?
Effective impedance is the relative impedance of a reactor or transformer under actual operating conditions.
