What is the ISO standard for welding symbols?
ISO 2553
ISO 2553, Welding and allied processes – Symbolic representation on drawings – Welded joints, combines both systems and is the key industry International Standard for welding symbols.
What are the basic weld symbols?
The skeleton of a welding symbol has an arrow, a leader line (attached to the arrow), a horizontal reference line, a tail, and a weld symbol (not to be confused with welding symbol, which refers to the whole thing. See symbol 1). Hold on, if you’re already lost, don’t panic. It’ll all start making sense soon.
What are the 3 required elements for a weld symbol?
The basic fillet weld symbol consists of a reference line, an arrow line, the tail, Weld Procedure Specification (WPS) information, and the fillet weld symbol including leg size. Some of the more common optional elements of a fillet weld symbol are shown in Figure 3.
What is A and Z in welding?
z = Leg Length. a = Throat thickness. s = Effective throat thickness – for deep penetration welds.
What are the welding standards?
American Welding Society (AWS) Standards
| Standard Number | Title |
|---|---|
| AWS B2.1 | Specification for Welding Procedure and Performance Qualification |
| AWS D1.1 | Structural welding (steel) |
| AWS D1.2 | Structural welding (aluminum) |
| AWS D1.3 | Structural welding (sheet steel) |
How do you draw welding symbols?
Any symbol that is used to show a joint or weld type feature on the other side of the arrow line is always placed on a dotted line. BS 499 and AWS require symbols to be placed above the reference line (which indicate the other side) or below the reference line (indicating the arrow side of the joint).
What does R mean in welding symbol?
Common supplementary symbols used with groove welds are the melt-thru and backing bar symbols. Both symbols indicate that complete joint penetration is to be made with a single-sided groove weld. If the bar is to be removed after the weld is complete, an “R” is placed within the backing bar symbol.
What does M mean in welding symbols?
machining

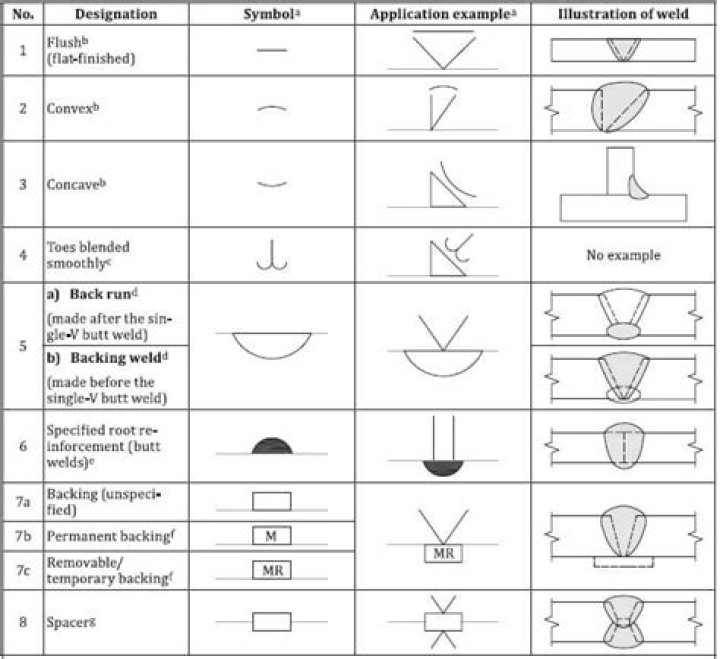

Contour and Finish Symbols: The contour symbol is placed above or below the weld symbol. The finish symbol always appears above or below the contour symbol. The following finish symbols indicate the method, not the degrees of finish: C—chipping; G—grinding; M—machining; R—rolling; and H—hammering.
Where can I find the welding symbols used in Australia?
Welding symbols used in Australia are based on the Australian Standard AS 1100.101-1992. You can research the full range of welding symbols in the Engineering Drawing Handbook produced by Standards Australia and the Institution of Engineers.
What is the difference between Weld symbol and welding symbol?
2.1 BASIC SYMBOLS 2.1.1 Distinction between weld symbol and welding symbol This Standard makes a distinction between the terms weld symbol and welding symbol. The weld symbol (see Figure 2.1) indicates the type of weld.
Who prepared the Australian standard wd-001?
This Australian Standard was prepared by Committee WD-001, Welding Definitions and Symbols. It was approved on behalf of the Council of Standards Australia on 25 November 2004. This Standard was published on 31 March 2005. The following are represented on Committee WD-001:
What are the safety precautions for welding?
Welding is a potentially hazardous activity and precautions are required to avoid electrocution, fire and explosion, burns, electric shock, vision damage, inhalation of poisonous gases and fumes, and exposure to intense ultraviolet radiation.
