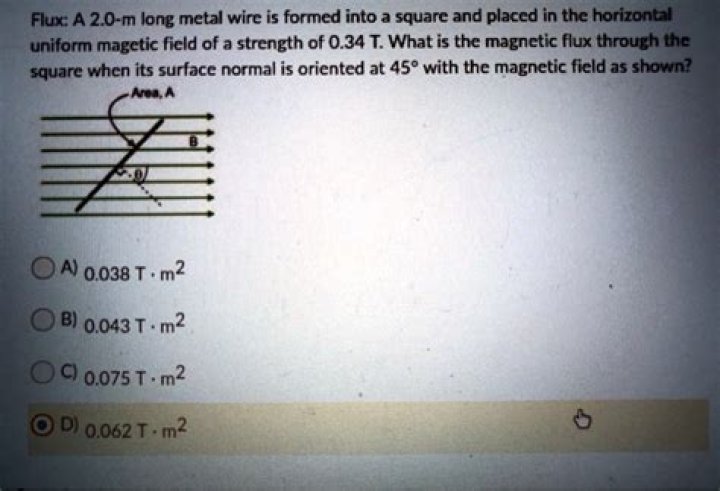

What is the magnetic flux through the square?
The resultant flux through the square loop will be a sum of magnetic field coming out and magnetic field going in. Above the wire, we can observe that the magnetic field appears to be coming out and below the wire the magnetic field appears to be going in.
What is the magnetic field at the centre of the loop?
zero
The magnetic field at the centre of a circular loop carrying current is zero.
What is the magnetic field intensity at the centre of a square?
Explanation: The magnetic field is given by H = 4I/√2πω. Put I = 10 and ω = 5m. Thus H = 4 x 10/√2π(5) = 1.8 unit. This discussion on Find the magnetic field intensity at the centre O of a square of the sides equal to 5m and carrying 10A of current.
How do you find the magnetic field?
Electric current produces a magnetic field. This magnetic field can be visualized as a pattern of circular field lines surrounding a wire. One way to explore the direction of a magnetic field is with a compass, as shown by a long straight current-carrying wire in. Hall probes can determine the magnitude of the field.
How do you find the total magnetic flux through a loop?
Calculate the change in magnetic flux through the circular loop.
- Solution: A = π R2 = π ( .040m)2 = 0.0050 m2 When the loop is horizontal, θ = 0, and the flux is.
- Φ1 =BAcosθ =(0.17 T)(0.0050m2)(1) = 8.5×10-4 Tm2
- Φ2 = B A cosθ = (.17 T)(0.0050m2)( 0 ) = 0 Tm2
- Φ2 – Φ1 = 0 – 8.5×10-4 Tm2 = – 8.5×10-4 Tm2
What is the difference between magnetic field and magnetic flux?
Magnetic field describes a region where a magnetic force can be felt. Magnetic flux describes how much magnetic field passes through an area.
How do you find the emf of A magnetic field?
Calculating the induced EMF Magnetic flux = Magnetic field strength x Area = BA. Therefore…Induced EMF = (change in Magnetic Flux Density x Area)/change in Time. Therefore, Induced EMF = (Bπr2n)/t.
How is current induced by A magnetic field?
A current can be induced in a conducting loop if it is exposed to a changing magnetic field. In other words, if the applied magnetic field is increasing, the current in the wire will flow in such a way that the magnetic field that it generates around the wire will decrease the applied magnetic field. …
Why magnetic field at the centre of the loop is zero?
The magnetic field of center of circle is zero because whole circle will have magnetic field so middle part becomes zero. If more over if it has magnetic field then that may not be in set place, it moves hear and there so to be constant there will be zero in circular loop.
What is the value of magnetic field at the centre of current carrying loop?
The magnetic field at the center of the loop is. (μo=4π×10−7weber/amp−m)
How do you find the magnetic field direction in a loop?
We first consider arbitrary segments on opposite sides of the loop to qualitatively show by the vector results that the net magnetic field direction is along the central axis from the loop. From there, we can use the Biot-Savart law to derive the expression for magnetic field. Let P be a distance y from the center of the loop.
What is the magnetic field at point P?
The magnetic field at point P is measured to be zero. The magnetic field at point P has been determined in Equation 12.15. Since the currents are flowing in opposite directions, the net magnetic field is the difference between the two fields generated by the coils.
Do two loops of different radii have the same current?
Figure 12.13 Two loops of different radii have the same current but flowing in opposite directions. The magnetic field at point P is measured to be zero. The magnetic field at point P has been determined in Equation 12.15.
How is Biot Savart law used to determine magnetic field?
Explain how the Biot-Savart law is used to determine the magnetic field due to a current in a loop of wire at a point along a line perpendicular to the plane of the loop. Determine the magnetic field of an arc of current.
