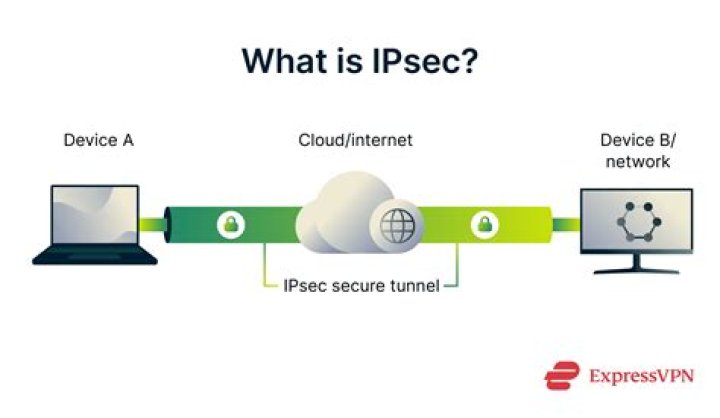

What is the overhead of IPsec?
Summary. So, as demonstrated, for data payloads in excess of the common TCP payload maximum segment size (the MSS) of 1460 Bytes, the IPSec bandwidth overhead using AES is approximately 9.32%.
How do you calculate packet overhead?
To calculate an application’s network overhead using Netstat
- Retrieve the current interface statistics using Netstat.
- Execute the application.
- Get the interface statistics, again using Netstat.
- Calculate the number of bytes received between the two Netstat measurements.
How big is the IPsec header?
For IPsec tunnel, the header length is variable and can be upto 64 bytes. This ensures that packets traveling through your GRE or IPSec tunnel do not exceed the packet size limitations of your network appliance or other appliances in the path between your network appliance and the ZIA Public Service Edge.
Does VPN affect MTU?
9 Replies. It’s to do with the overheads of the VPN tunnel, an MTU too high will mean packets need to be fragmented causing additional load on the routers.
How much overhead does GRE add?
GRE adds at least 24 bytes of overhead, including the new 20-byte IP header. GRE is multiprotocol and can tunnel any OSI Layer 3 protocol. GRE permits routing protocols to travel through the tunnel.
What is packet overhead?
Packet-overhead meaning The time it takes to transmit data on a packet-switched network. Each packet requires extra bytes of format information that is stored in the packet header, which, combined with the assembly and disassembly of packets, reduces the overall transmission speed of the raw data.
How do you calculate overhead in data communication?
Protocol overhead can be expressed as a percentage of non-application bytes (protocol and frame synchronization) divided by the total number of bytes in the message.
How much bandwidth does an IPsec tunnel use?
When using IPsec VPN, maximum bandwidth is approximately 1 Gbps because of the limitation of the Edge Gateway.
How much overhead does a VPN add?
How much data does a VPN use? A VPN encrypts those files during the transfer, and that process does create some overhead. By most estimates, the encryption process adds about 10-15% more data usage. Computing this is fairly easy.
What is MTU size in VPN?
The maximum transmission unit (MTU) is the size, in bytes, of the largest packet supported by a network layer protocol, including both headers and data. Network packets sent over a VPN tunnel are encrypted and then encapsulated in an outer packet so that they can be routed.
What is the overhead in OpenVPN?
The overhead in OpenVPN is a function of the interface, transport protocol, cryptographic algorithm, and compression. The fixed overhead added to each packet is 14 bytes from the frame header and 20 bytes from the IP header. The transport protocol, used to form the VPN tunnel, contributes 8 (32) bytes from the UDP (TCP) header.
What is the encapsulation overhead of your protocol stack?
Knowing the encapsulation overhead of your protocol stack is important for configuring VPN tunnels. You need to set the tunnel interface MTU correctly, to avoid excessive packet fragmentation. This tool allows you to easily see what each protocol adds to your packet.
What are the performance limitations of a VPN?
The performance of a VPN solution is often limited by the CPU on one or both of the endpoints which must encapsulate, encode, transmit, receive, and decode packets. Monitoring the CPU utilization of each device allows us to identify the bottleneck in the network communication. For this metric, utilization in the middle of the range is better.
Why does OpenVPN use tunneling?
They use tunneling to establish end-to-end connectivity. OpenVPN is a cross-platform, secure, highly configurable VPN solution.
